| Name |

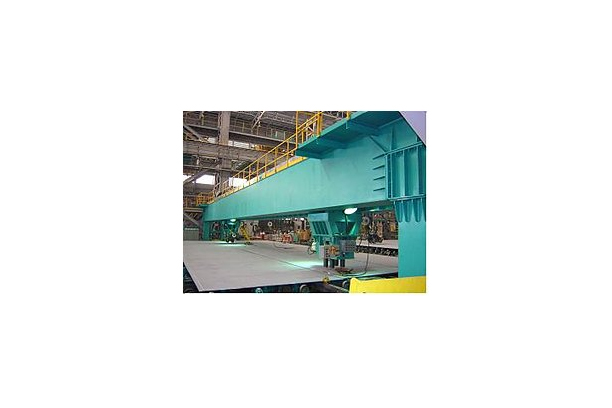

Plate Joining Machine for Base Plate |
| Series | Welding System |
The outline of equipment
- This is a fit-up machine for panel block. This is gantry type and fit-up head is equipped with hydraulic system(pressing device).
Welding Process
- Manual Welding : GMAW 1Pole x 2Head = 2Poles
Construction of equipment
- Travelling Speed : Max. 20mm/Min
- Traversing Carriage : 20mm/Min
- Pressing Force : 10Ton x 4Ea x 2Head
- 하부 정열 Pusher : Hydraulic System
