| Name |

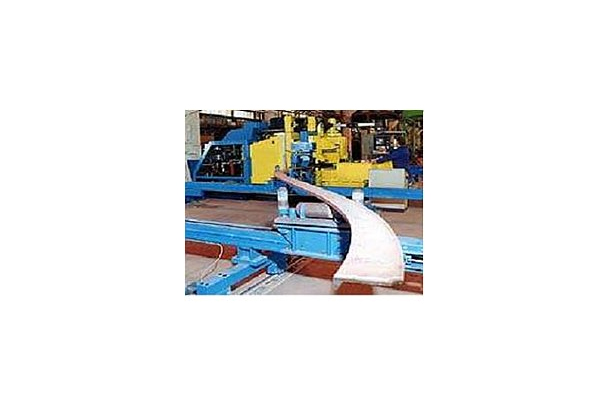

Forming & Bending System |
| Series | Cutting & Forming System |
The outline of equipment
- It is a bending machine in block manufacturing process, it consist of hydraulic system and NC program. Bending datum are automatically produced by DNC data, and also kerf quantity according to material's elastic variation.
Construction of equipment
- In-feeding Conveyor
- Forming Machine
- Out-going Conveyor
- Control Room
