The outline of equipment

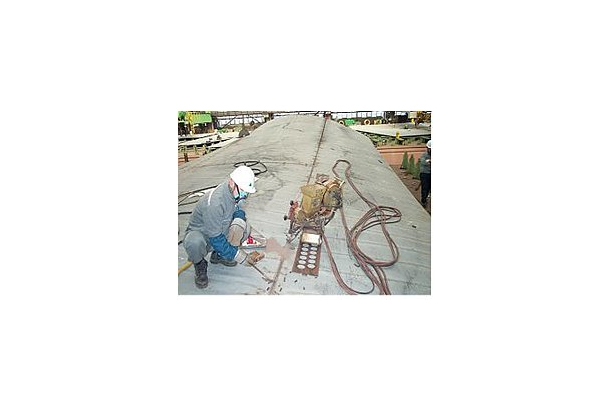

- This is a gantry type welding equipment for curved fit-up panel on the pin jig. It is automatically recognizing panel’s curvature and welding head is adjustable by tilting device. Carriage consist of flux supply, recovery system and welding wire reel.
Welding Process
- Welding Process : Submerged Arc Welding
- 전극 구성 : 2Poles x 2Heads, DC + AC
- 용접 자세 : 1G
- 적용 Wire : φ4mm
- Welding Speed : 100mm ~ 1200mm/min
Construction of equipment
- Travelling Speed : Max. 30/Min
- Tack Welding Carriage :
Return Speed : 20M/Min
Welding Speed : 500~1,500mm/Min
- Welding Power Source : A.C 1,200A x 1Set, D.C 1,500A x 1Set
- Seam Tracking : Arc Sensor
- Flux Supply & Recovery System : 300Kg
