The outline of equipment

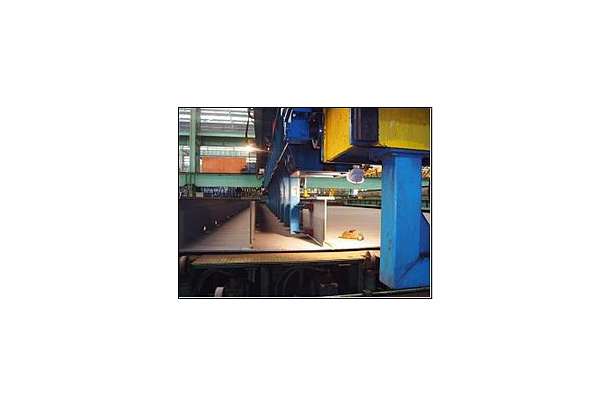

- This is a fit-up and tack welding machine for stiffener according to marking line in main panel. It consist of pressing, skewing, tilting, front arranging device and welding carriage.
Welding Process
- Welding Process : FCAW 1Pole x 24 Head = 24Poles
- 전극 구성 : 1Poles
- 용접 자세 : 1F
- 적용 Wire : φ1.2, φ1.4, φ1.6mm
- Welding Speed : 100mm ~ 800mm/min
Construction of equipment
- Travelling Speed : Max. 30/Min
- Tack Welding Carriage :
Return Speed : 10M/Min
Welding Speed : 500~1,500mm/Min
- Welding Power Source : D.C 350A x 24Sets
- Seam Tracking : Mechanical Guide Roller
- Fume Collector : 50mmAq x 2Sets
