The outline of equipment

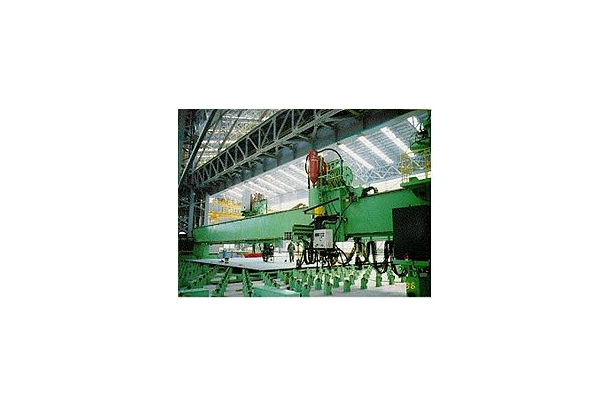

- This is a gantry type welding machine for fit-up base plate. Single girder has 2 sets of welding carriage. A carriage consist of flux supply, recovery system and welding wire reel.
Welding Process
- Welding Process : Submerged Arc Welding
- 전극 구성 : 3Poles x 2Heads, DC + AC + AC
- 용접 자세 : 1G
- 적용 Wire : φ4mm
- Welding Speed : 100mm ~ 1,200mm/min
Construction of equipment
- Travelling Speed : Max. 30/Min
- Welding Carriage :
Return Speed : 20M/Min
Welding Speed : 500~1,500mm/Min
- Welding Power Source : A.C 1,200A x 2Sets, D.C 1,500A x 1Set
- Seam Tracking : Laser Spot Light
- Flux Supply & Recovery System : 300Kg
