The outline of equipment

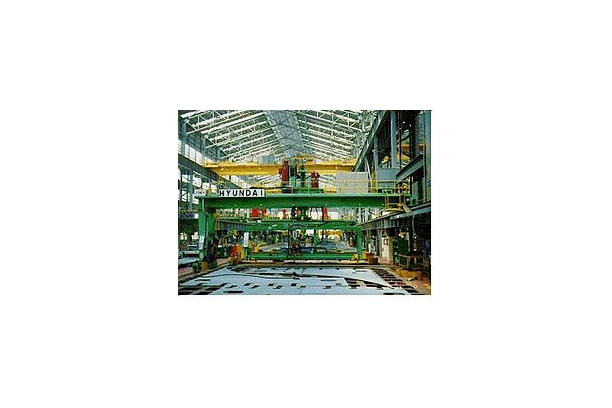

- This is a butt seam welding equipment for sub assembly panel line in shipbuilding. This equipment weld arranged panel on the lower jig. Welding direction is can adjustable not only 360° rotation, but also up/down.
Welding Process
- Welding Process : Submerged Arc Welding
- 전극 구성 : 2Poles, DC + AC
- 용접 자세 : 1G
- 적용 Wire : φ4mm
- Welding Speed : 100mm ~ 1,200mm/min
Construction of equipment
- Travelling Speed : Max. 20/Min
- Swing Angle : ±360°
- Lifting Stroke : 500mm
- Welding Carriage : SWT41
- Welding Power Source : D.C 1,500A
- Seam Tracking : Laser Spot Light
- Flux Supply & Recovery System : 300Kg
