The outline of equipment

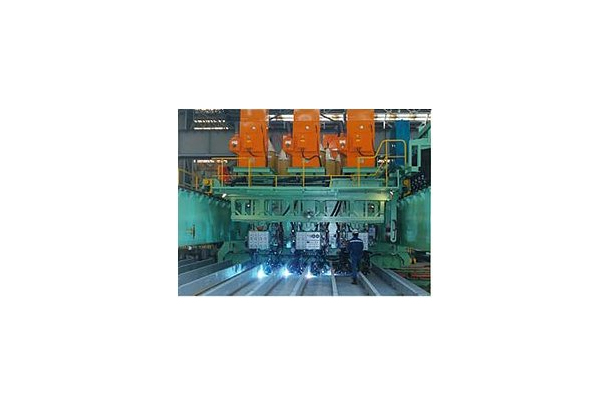

- This is a line welding equipment for stiffener after finishing fit-up. Each head has twin Tandem 4 pole. Welding carriage consist of pail pack, welding power source and fume collector. Welding head can adjustable by customer’s needs, it have max, 10 sets (40 poles) and weld 10 stiffener at once.
Welding Process
- Welding Process : FCAW 4Pole x 7Head = 28Poles
- 전극 구성 : 4Poles
- 용접 자세 : 1F
- 적용 Wire : φ1.2, φ1.4, φ1.6mm
- Welding Speed : 100mm ~ 1500mm/min
- M.P.S (Memory Playback System) 장착
Construction of equipment
- Travelling Speed : Max. 30/Min
- Tack Welding Carriage : Return Speed : 10M/Min
......................Welding Speed : 500~1,500mm/Min
- Welding Power Source : D.C 600A x 28Sets
- Seam Tracking : Mechanical Guide Roller
- Fume Collector : 60mmAq x 2Sets
