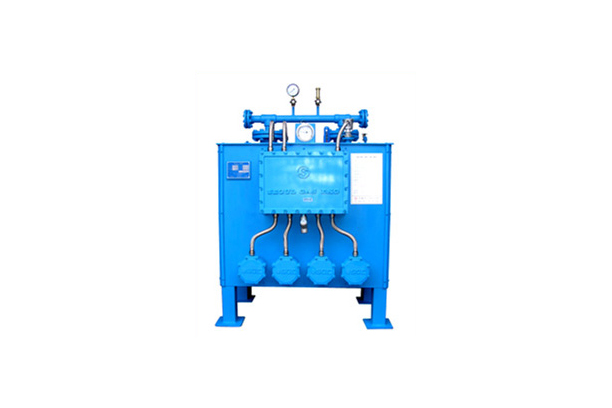

Name	Electric Water Bath Vaporizer
Model	SVW-E-60, SVW-E-100, SVW-E-200, SVW-E-30, SVW-E-400, SVW-E-500, SVW-E-600, SVW-E-800, SVW-E-1000
Series	Vaporizer

Product Description

Note

- Electricty 220V, 380V and 440V 3Pase or single(220V)
- Hot water temperature range is 65℃ up to 80℃
- All electric heating system is fitted with pressurized flameproof
- For the CO2 cylinder type detail specification should be advised on purchase order

Specification

MODEL	OAPAOITY	HETING CONSUMPTION									WEGHT (kg)
		ELEOTRIO (kw/h)	INT (A)	OUT (A)	SIZE(mm)
		ELEOTRIO (kw/h)	INT (A)	OUT (A)	A	B	O	D	H	W
SVW-E-60	50kg/h	10	20	20	950	1,060	540	540	1,248	620	145
SVW-E-100	100kg/h	15	20	25	1,065	1,160	540	540	1,350	600	190
SVW-E-200	200kg/h	30	20	25	1,120	1,220	64	640	1,400	800	270
SVW-E-30	300kg/h	45	20	40	1,220	1,330	640	640	1,500	1,5005	400
SVW-E-400	400kg/h	60	25	50	1,275	1,425	640	640	1,654	1,060	540
SVW-E-500	500kg/h	70	25	50	1,400	1,555	640	640	1,785	1060	530
SVW-E-600	600kg/h	88	25	50	1,530	1,685	640	640	1,915	1,060	690
SVW-E-800	800kg/h	110	40	50	1,570	1,715	640	640	1,945	1,310	895
SVW-E-1000	1,000kg/h	145	40	60	1,700	1,845	620	620	2,010	1,320	1,020
1,000kg/h other made
