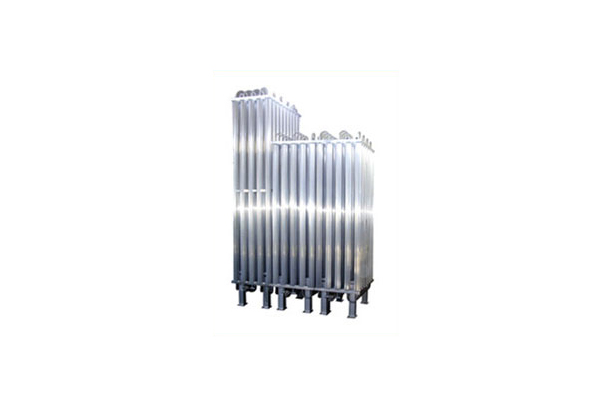

Ambient Vaporizer
Model SVA-20, SVA-30, SVA-40, SVA-50, SVA-60, SVA-80, SVA-100, SVA-150
Series Vaporizer
Product Description


Specification

No

DESIGN
pressure

DESIGN
temperature

HYDRO TEST
pressure( N₂)

MATERIAL

PIN TUBE

PIPE

10.1 ∼ 3.5MPa

-196℃ ∼ 40℃

4 .375MPa

A6063S-T5
2

3.5 ∼20 MPa

-196℃ ∼ 40℃18.75 MPaA6063S-T5STS304TP-A
3

20 ∼50 MPa

-196℃ ∼ 40℃

62.5 MPa

A6063S-T5STS304TP-A


Dimension

MODELCAPACITYSTAR PIN TUBE(□125)
DIMENSION(mm)SURFAC
EAREA(㎡)
WLHd1d2

SVA-20

20N㎥/h

7273401,3007003006.8
SVA-3030N㎥/h7305301,31567850010.2
SVA-4040N㎥/h7207201,57570070013.6
SVA-5050N㎥/h8255302,33562041017.0
SVA-6060N㎥/h8655302,59065532020.4
SVA-8080N㎥/h9357352,58070070025.5
SVA-100100N㎥/h1,1607252,68082565234.0
SOV-150150N㎥/h1,2859252,6201,05084551.0

150N㎥ /h other made
Installation space according to (W.L.H) other made (Star Pin tube ?175 made)
Applications : LOX, LIN, LAr, LCO2, LNG, LPG, Cl2, N2O, LC2H4 Etc.
 - Other items can be made according to the customers specification
