Name

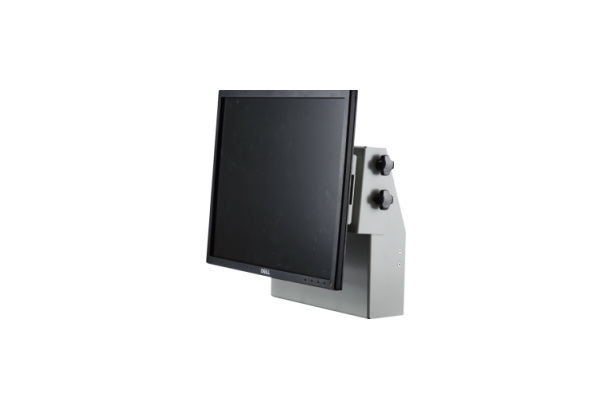

Dell P1917S With Anti-Vibration Kit

Model TVK–DM–001
Series Marine · Offshore
Catalog tetradyne_124505_reshux-ZLrHtFa.pdf
Product Description

GENERAL

Dell 19 inch LCD monitor, P1917S is type approved for marine usage when it is used in

conjunction with a TD Kit, TVK-DM-001. The combination (P1917S + TVK-DM-001) can be used in operator display in various industrial and marine applications.



KEY FEATURES

- Wide viewing angle by IPS pannel : 178/178

- Flicker-free screen with ComportView

- Display Port 1.2, HDMI 1.4, VGA, 2x USB 3.0, 2x USB 2.0

- Under certification by ABS, DNV GL, LR, KR

- IACS E10 & IEC60945 for wheel-house installation


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeActive matrix - TFT LCD
Viewable Size19 inch diagonal
Resolution1280 x 1024 @60Hz
Aspect Ratio5:4
Brightness250cd/㎡
Contrast Ratio1000:1
Response Time8 ms
Active Area374.78 (H) x 299.83 (V) mm
Pixel Pitch0.293 (H) x 0.293 (V) mm
Viewable Angle178° RL / 178° UD
Support Color16.7M colors
Synchronization Range30 ~ 81 Hz (Horizontal)
56 ~ 76 Hz (Vertical)
Connector Type1 x DP
1 x HDMI
1 x VGA
1 x USB 3.0 port (Upstream)
2 x USB 3.0 port (Side)
2 x USB 2.0 port (Bottom)
Power Specification100 ~ 240 VAC 50/60Hz 1.5A
Consumption38W (MAX)
Dimension (Kit mounted)405.6 (W) x 395 (H) x 185 (D) mm
Weight (Kit mounted)5.0kg
Temperature RangeOperating : 0℃ ~ + 55℃
Non-Operating : -20℃ ~ + 60℃
Humidity RangeOperating : up to 90%
Non-Operating : up to 90%
CertificationABS, BV, CCS, DNV GL, KR, LR, NK
Warranty36 months


DRAWING
