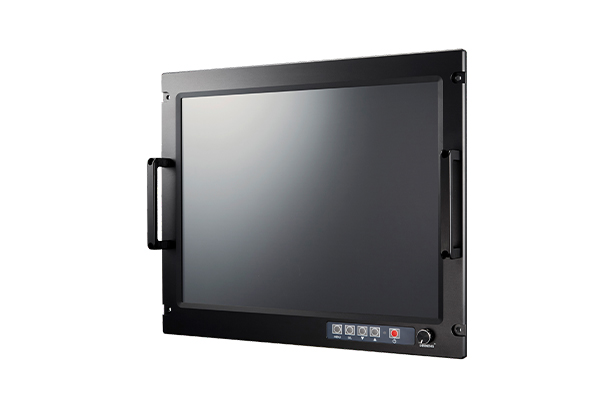

20.1 Inch Military Monitor

Model TMM-201
Series Military
Catalog tetradyne_124515_cmpnpa-xAB7qX1.pdf
Product Description

GENERAL

This specification defines the descriptions for the TMM-201 TFT LCD Monitor.

TMM series is developed and designed for use in operator display such as Military applications.

TMM series are subject to strict quality tests performed both internally and by independent

Military test rule.



KEY FEATURES

- MIL Qualified Product from Military test rule

- Anti-Glare and Anti-Reflective TFT LCD Technology

- LED Backlight Technology

- Tempered Glass for Panel Protection

- Long-Term Lifecycle Management


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
TFT TechnologyActive Matrix Liquid Crystal Display, Amorphous TFT (Thin Film Transistor)
Anti-Glare & Anti-Reflective, LED Backlight Technology
Viewable Size20.1 inch diagonal
Active Area408 (H) x 306 (V)mm
Resolution1600 (H) x 1200 (V)
Pixel Pitch0.255 (H) x 0.255 (V))
Aspect Ratio4:3
Response Time30ms
Brightness330cd/㎡
Contrast Ratio1400:1
Viewable Angle170°RL / 170°UD
Max Colors16.7Million True Color
Synchronization Range31~80KHz (Horizontal)
55~76Hz (Vertical)
Optimal Resolution1600 x 1200 @60Hz
Input Signal1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
1 x RS232 (D-SUB 9p female)
User ControlOSD-Button : Power, Menu, Select, Up, Down
Dimming Control : 0~100%
Power Consumption50W (MAX)
Power Specification100~230VAC 50/60Hz (Military connector)
Product Dimension483mm (W) x 399mm (H) x 83mm (D)
Weight12kg
EMCMIL-STD-461E
CE102, CS101, CS114, CS116, RE101, RE102, RS101, RS103
Environmental (Test Approval)MIL-STD 810F:2003 Method 502.4 Procedure I, II
MIL-STD 810F:2003 Method 501.4 Procedure I, II
MIL-STD 810F:2003 Method 507.4
Shock (Test Approval)MIL-STD 901D (NAVY):1989 (Hi-Shock Test)
Vibration (Test Approval)MIL-STD-167-1A:2005
ChassisAluminum
