Name

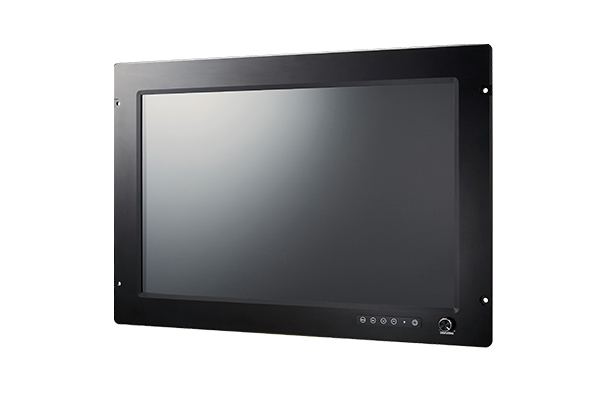

24 Inch Marine Monitor

Model TIM-W240NH
Series Marine · Offshore
Catalog tetradyne_124490_pnsrvh-t5Wo90j.pdf
Product Description

GENERAL

This specification defines the descriptions for the TIM-W240NH TFT LCD Monitor.

TIM series is developed and designed for use in operator display such as Industrial and

Marine applications.


TIM-W240NH is type-approved by ABS, BV, DNVGL, KR, LR, RS.



KEY FEATURES

- Mambrane OSD control

- DVI-D, RGB Input Signal

- Console, Stand (Desktop) Mounting Type

- Aluminum chassis (Front)


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeLED Backlight, Wide TFT LCD
Viewable Size24 inch diagonal
Resolution1920 x 1200 @60Hz
Aspect Ratio16:10
Brightness300cd/㎡
Contrast Ratio1000:1
Response Time14ms
Active Area518.400 (H) x 324.000 (V) mm
Pixel Pitch0.270 (H) x 0.270 (V) mm
Viewable Angle178°RL / 178°UD
Support Color16.7M colors
Synchronization Range31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Detectable Resolution640 x 350, 640 x 480, 720 x 400,
800 x 600, 1024 x 768, 1280 x 1024,
1600 x 1200, 1920 x 1080, 1920 x 1200
Connector Types1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
1 x RS232 (D-SUB 9p female)
Power Specification110VAC~230VAC 50/60Hz (IEC Standard AC Inlet)
Power Consumption40W (MAX)
Dimension630 (W) x 74 (D) x 436 (H) mm
Weight13.12kg
Temperature RangeOperating : 0℃ to +55℃
Non-Operating : -20℃ to +60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
OptionDimming : 3~100%
Test ApprovalIEC 60945, IACS E-10
CertificationABS, BV, DNV, KR, LR, RS
Warranty24 months

DRAWING
