Name

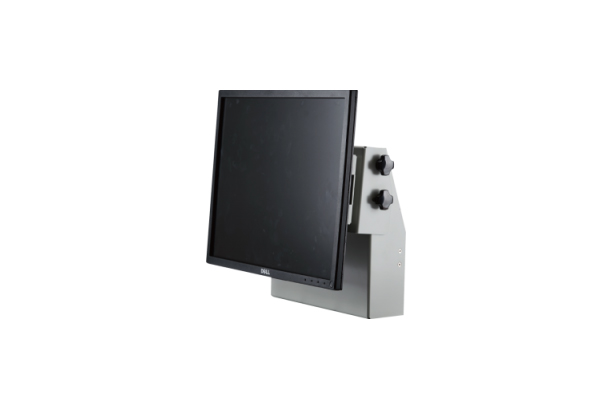

Dell P1917S With Anti-Vibration Kit

Model TVK-DM-001
Series TD KIT (Anti-Vibration)
Product Description

GENERAL

Dell 19 inch LCD monitor, P1917S is type approved for marine usage when it is used in

conjunction with a TD Kit, TVK-DM-001. The combination (P1917S + TVK-DM-001) can be used in operator display in various industrial and marine applications.



KEY FEATURES

- 19 inch LCD (LED backlight) monitor

- 1280 x 1024 (5: 4) at 60Hz

- Power : 100 to 240 VAC , 50/60Hz

- Wide viewing angle by IPS pannel : 178/178

- Flicker-free screen with ComportView

- Display Port 1.2, HDMI 1.4, VGA, 2x USB 3.0, 2x USB 2.0 Under certification by ABS, DNV GL, LR, KR

- IACS E10 & IEC60945 for wheel-house installation


SPECIFICATON

GENERAL FEATURE
SectionSpecifications
TFT TechnologyActive matrix - TFT LCD
Viewable Size19 inch diagonal
Active Area374.78 mm (H) x 299.83 mm (V)
Resolution1280 x 1024
Pixel Pitch0.293 mm (H) x 0.293 mm (V)
Aspect Ratio5:4
Response Time8 ms
Brightness250cd/㎡
Contrast Ratio1000:1
Viewable AngleR/L 178°, U/D 178°
Max Colors16.7 Million colors
Synchronization Range30 kHz ~ 81kHz (Horizontal)
56 kHz ~ 76kHz (Vertical)
Optimal Resolution1280 x 1024 @60Hz
Input Signal1 x DP
1 x HDMI
1 x VGA
1 x USB 3.0 port (Upstream)
2 x USB 3.0 port (Side)
2 x USB 2.0 port (Bottom)
Power Specification100VAC ~ 240VAC , 50/60Hz , 1.5A
Consumption38W (MAX)
Dimension (Kit mounted)405.6(W) x 395(H) x 185(D) mm
Weight (Kit mounted)5.0kg
Environmental FactorOperation Temp : 0℃ ~ + 55℃
Storage Temp : -20℃ ~ + 60℃
Humidity : up to 90%
CertificationABS, DNV GL, LR, KR
Warranty36 months


DRAWING
