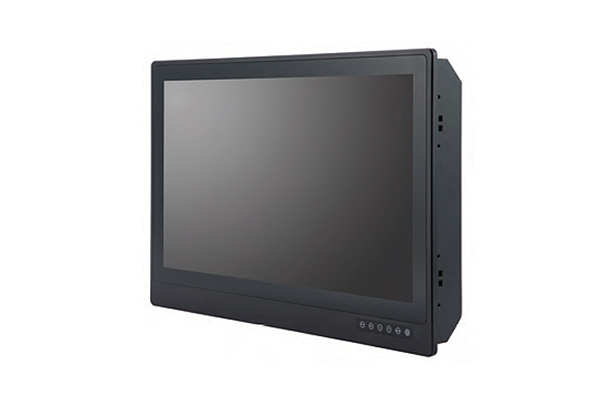

23.8 Inch Marine Monitor

Model TIMX-W238
Series Marine · Offshore
Catalog tetradyne_124498_ucudpe-Ky0m8fJ.pdf
Product Description

GENERAL

This specification defines the descriptions for the TIMX-W238 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications.


TIMX-W238 is type-approved by DNVGL.



KEY FEATURES

- Capacitive touch OSD Control

- HDMI, DVI, RGB, BNC (Option) input

- Picture in Picture (PIP)

- Projected Capacitive Touch Screen – Option

- Anti-glare – Option

- Internal Buzzer Control – Option

- Flush Mounting


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeLED Backlight, Wide TFT LCD
Viewable Size23.8 inch diagonal
Resolution1920 x 1080 @60Hz
Aspect Ratio16:9
Brightness300cd/㎡
Contrast Ratio3000:1
Response Time16ms
Active Area527.04 (H) x 274.5 (V) mm
Pixel Pitch0.2745 (H) x 0.2745 (V) mm
Viewable Angle178° RL / 178° UD
Support Color16.7M colors
Synchronization Range31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Detectable Resolution640 x 480, 800 x 600,
1024 x 768, 1280 x 1024,
1920 x 1080
Connector Types1 x HDMI (Standard)
1 x DVI (DVI 24p female)
1 x RGB (D-SUB 15p female)
2 x Composite (CVBS)
1 x RS232 (D-SUB 9p female)
1 x RS-422/485 (Euro Terminal Block)
Power Specification100~230VAC 50/60Hz (IEC Standard Type)
DC24V (Terminal Block)
Power Consumption35W (MAX)
Dimension595 (W) x 70 (D) x 393 (H) mm
Weight11kg
Temperature RangeOperating : -15℃ to +55℃
Non-Operating : -20℃ to +60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
OptionProjected Capacitive Touch Screen
Anti Glare Glass, Optical Bonding
Sunlight Readable/High Brightness
RS-232/422/485
Composite Video
Buzzer
IP-RatingIP65 Front
Test ApprovalIEC 60945 4th, IACS E-10, IEC 60529
CertificationDNV GL
Warranty24 months
