Name

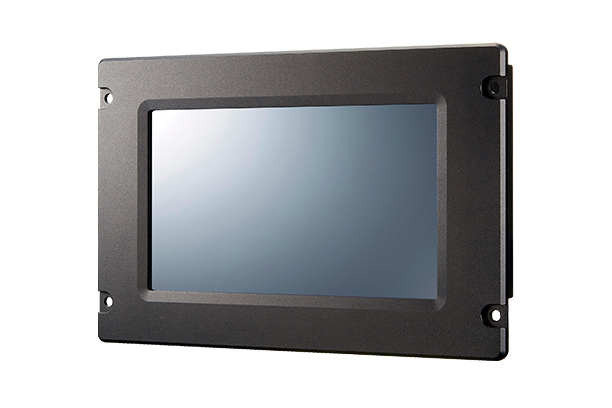

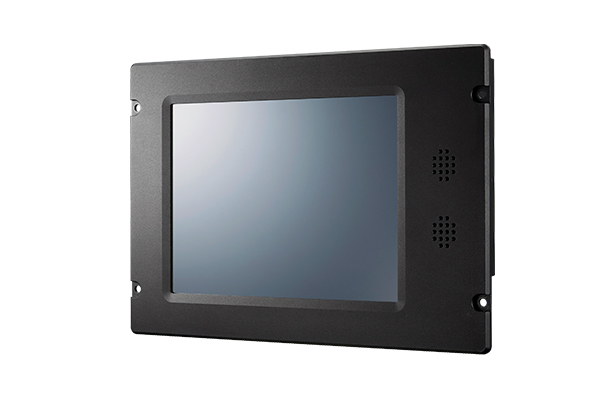

7 Inch Embedded Touch Panel

Model TIP-070WT
Series Marine · Offshore
Catalog tetradyne_124507_mttncz-wanxmbc.pdf
Product Description

GENERAL

TIP-070WT is Embedded Touch Panel product with the open-platform flexibility

of the Windows® CE operating system.

The unit can be used for applications with a need to monitor, control and

display information such as EAP (Extension Alarm Panel) and any

other monitoring required applications.

With Flush/Console mounting type the unit can be mounted on a bridge,

an engineer-on-duty’s cabin and all the popular industrial panels or specialized panels

designed for rugged and marine environments.

The unit is equipped with 7″ LCD touch display and designed for easy operation

and supports various communication standards such as RS485, LAN and CAN.



KEY FEATURES

- Resistive Touch screen

- RS485, LAN, CAN Communication

- Power : 24VDC input (18~36VDC)


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeLED Backlight , Wide TFT LCD
Viewable Size7 inch diagonal
Resoultion800 x 480
Brightness400 cd/㎡
Contrast Ratio500:1
Response Time35 ms
Active Area154.08 (H) x 85.92 (V) mm
Viewable Angle140° RL / 120° UD
Touch type4-Wire Resistive
SystemCPUS5PV210 (ARM Cortex A8) - 1GHz
MemorySDRAM 512MB
StorageNAND FLASH 512MB
Connector Types2 x CAN 2.0
4 x RS-485
1 x RJ45 (10/100Mbps Ethernet)
2 x USB 2.0 Port
1 x Mini USB Port (Internal use only)
1 x Micro SD Card Slot
Power SpecificationDC 24V (DC 18~36V)
Power Consumption12W (MAX)
Dimension216 (W) x 138 (H) x 45 (D) mm (No Buzzer)
241 (W) x 140 (H) x 45 (D) mm (Built-in Buzzer)
Weight1.10kg (No Buzzer)
1.26kg (Built-in Buzzer)
Temperature RangeOperating : 0° to 60℃
Non-Operating : -20° to 80℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
Supported OSWindows CE 6.0
OptionBuzzer 1 : Min. 85dB Buzzer (350~500Hz) built-in Internal Control
Buzzer 2 : Min. 95dB Buzzer (3,200±500Hz) built-in External Control
CertificationDNV
Warranty24 months


DRAWING
