Name

22 Inch Marine Monitor

Model TIM-W220SK
Series Marine · Offshore
Catalog tetradyne_124504_apjfws-pKL1YWe.pdf
Product Description

GENERAL

This specification defines the descriptions for the TIM-W220SK TFT LCD Monitor. TIM-W series is developed and designed for use in operator display such as Naval and Marine applications.


TIM-W220SK is type-approved by IEC60945 for opendeck installation.


KEY FEATURES

- DVI, RGB Input

- Audio Input / 5 Watt Speaker Built-In

- Picture in Picture (PIP)

- Capacitive touch OSD Control

- Projected Capacitive Touch Screen – Option


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeLED Backlight, Wide TFT LCD
Viewable Size21.5 inch diagonal
Resolution1920 x 1080 @60Hz
Aspect Ratio16:9
Brightness300cd/㎡
Contrast Ratio1500:1
Response Time18ms
Active Area476.64 (H) x 268.11 (V) mm
Pixel Pitch0.24825 (H) x 0.24825 (V) mm
Viewable Angle178° RL / 178° UD
Support Color16.7M colors
Synchronization Range31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Detectable Resolution640 x 480, 800 x 600,
1024 x 768, 1280 x 1024
1920 x 1080
Connector Type1 x VGA
1 x DVI
1 x Audio
1 x PC Power/Alarm Button Control
Power Specification100~230VAC 50/60Hz (Terminal Block)
Power Consumption35W (MAX)
Dimension560 (W) x 70 (D) x 420 (H) mm
Weight9.8kg
Temperature RangeOperating : -15℃ to +55℃
Non-Operating : -20℃ to +60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
OptionProjected Capacitive Touch Screen
Anti Glare Glass, Optical Bonding
Sunlight Readable/High Brightness
RS-242/422/485, Buzzer
Composite Video, Sun Visor
Test ApprovalIEC 60945, IACS E-10
Warranty24 months

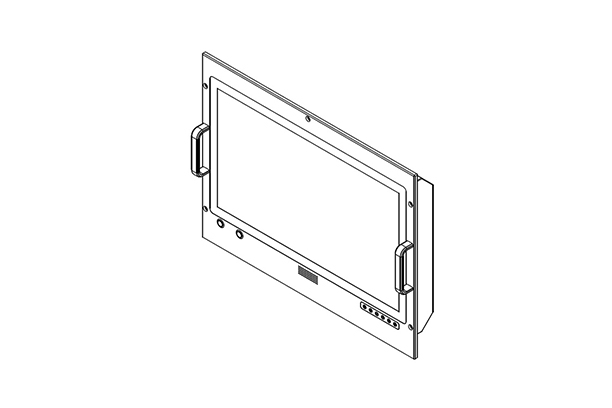

DRAWING
