KS/JIS
Series STUB END
Catalog deakyung-bend_122088_ajwcnk-8GaDQvH.pdf
Product Description
Nominal Pipe
Size (NPS)		Outside

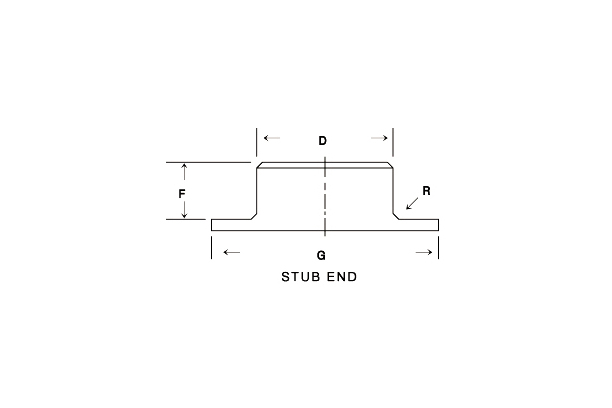

Diameter (D)		Diameter of Lap (G)Length (F)Radius of Fillet (R)
JISJPIJISJPIJISJPI
A
B
5K10K
15
20
25
½
¾
1
21.7
27.2
34.0
44
49
59
51
56
67
35
43
51
30
30
50
50
50
50
3
3
3
3.2
3.2
3.2
32
40
50
1¼
1½
2
42.7
48.6
60.5
70
75
85
76
81
96
64
73
92
50
50
50
50
50
65
4
4
4
4.8
6.4
7.9
65
80
100
125
2½
3
4
5
76.3
89.1
114.3
139.8
110
121
141
176
116
126
151
182
105
127
157
186
50
50
50
50
65
65
75
75
5
5
5
6
7.9
9.5
11.1
11.1
150
200
250
6
8
10
165.2
216.3
267.4
206
252
317
212
262
324
216
270
324
50
65
65
90
100
125
6
6
6
12.7
12.7
12.7
300
350
400
450
12
14
16
18
318.5
355.6
406.4
457.2
360
403
463
523
368
413
475
530
381
-
-
-
65
150
150
150
150
-
-
-
8
8
8
8
12.7
-
-
-
500
550
600
20
22
24
508.0
558.8
609.6
573
630
680
585
640
690
-
-
-
150
150
150
-
-
-
8
8
8
-
-
-
