DEAKYUNG BEND

Stainless welding pipe fitting manufacturer, alloy steel, stainless steel, duplex steel

Name	KS/JIS
Series	CAP
Catalog	deakyung-bend_122085_ealdmd-SPgFvRC.pdf

Product Description

Nominal Pipe Size (NPS)		Outside Diameter	End to End

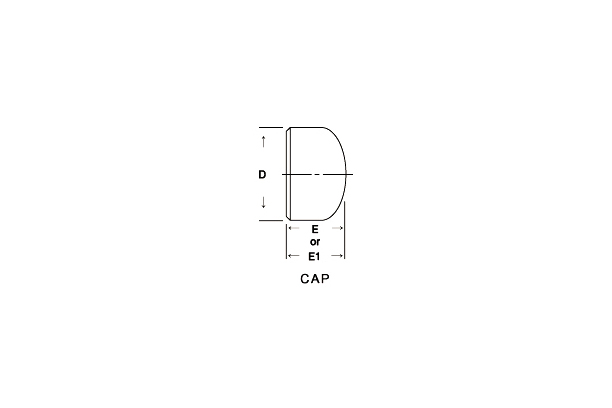

Nominal Pipe Size (NPS)		Outside Diameter	Cap
A	B	D	E	E1	Limit Wall Thick
15 20 25 32 40	½ ¾ 1 1¼ 1½	21.7 27.2 34.0 42.7 48.6	25.4 25.4 38.1 38.1 38.1	- - - - -	- - - - -
50 65 80 90 100	2 2½ 3 3½ 4	60.5 76.3 89.1 101.6 114.3	38.1 38.1 50.8 63.5 63.5	44.5 50.8 63.5 76.2 76.2	5.5 7.0 7.6 8.1 8.6
125 150 200 250 300	5 6 8 10 12	139.8 165.2 216.3 267.4 318.5	76.2 88.9 101.6 127.0 152.4	88.9 101.6 127.0 152.4 177.8	9.5 11.0 12.7 12.7 12.7
350 400 450 500 550 600	14 16 18 20 22 24	355.6 406.4 457.2 508.0 558.8 609.6	165.1 177.8 203.2 228.6 - -	190.5 203.2 228.6 254.0 - -	12.7 12.7 12.7 12.7 - -
650 700 750 800 850 900 950	26 28 30 32 34 36 38	660.4 711.2 762.0 812.8 863.6 914.4 965.2	- - - - - - -	- - - - - - -	- - - - - - -
1000 1050 1100 1150 1200	40 42 44 46 48	1016.0 1066.8 1117.6 1168.4 1219.2	- - - - -	- - - - -	- - - - -
