Name

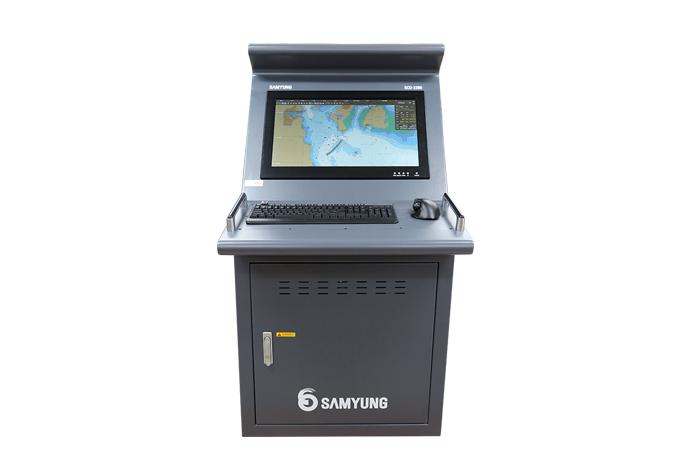

ECDIS

Model SCD-2000, SCD-2300
Series Navigation Equipment
Product Description

Features

·19”/23” Color LCD Display(Desk&Console Type)

·Route planning / Route control

·Route monitoring / Heading monitoring·Automatic alarm system

·AIS and ARPA target(Chart overlay)

·Radar overlay(Option)



Specifications

·STANDARD : IMO MSC.232(82), IEC61174 Ed.3, IEC61162-1 Ed.4, IEC61162-2 Ed.1, IEC62288,IEC60945 Ed.4

·MONITOR : 19” COLOR LCD(1280X1024), 23” COLOR LCD(1920X1080)

·BRIGHT : DAY,DUSK, NIGHT

·DISPLAY : NORTH UP, COURSE-UP, ROUTE UP, HEADING UP

·DATA : CHART : S-57, S-63 AND OFFICIAL/MANUAL UPDATE, QUERY INFORMATION

·PRESENTATION : OWNSHIP: SYMBOL, POSITION, COURSE, HEADING, SPEED

·TARGET(AIS, ARPA) : SYMBOL, COURSE, SPEED, BEARING, DISTANCE, CPA/TCPA, OTHERS INFORMATION

·ETC : USER CHART, EBL/VRM, RANGE RING...

·ALRAM INFORMATION : DANGEROUS , MONITORING , SENSOR , DETECTION ALARM AND SEVERAL ALARMS

·POSITION CALCULATION : DEAD RECKONING WITH GYRO AND SPEED LOG DATA

·ROUTE PLANNING : PLANNING BY RHUMB LINE AND GREAT CIRCLE

·NAVIGATION RECORDING : LATEST 24HOURS OF NAVIGATION DATA TO BE RECORDED

·ROUTE MONITORING

 : DISPLAY XTD, BTW, DTW, TTG, ETA, OFF-TRACK, WAYPOINT ARRIVAL ALARM, SHALLOW DEPTH ALARM, HAZARD ALARM

·USER CHART : CREATING AND DISPLAY OF USER CHART

·ETC

  : MOB MONITORING, ANCHORAGE MONITORING, FIXED OBJECT, BACKUP ARRANGEMENTS, CALCULATION CURRENT WHTH GPS,

    GYRO, SPEED LOG DAT

·POWER SUPPLY : 100-230 VAC, 1PHASE, 50/60Hz

 ·OPERATION ENVIORNMENT : TEMP -15C - +55C, HUMIDITY 93% OR LESS AT 40C, VIBRATION : IEC60945 Ed.4



SOFTWARE VERSION INFORMATION

Depending on the software version to comply with the provisions below.

ver. PI3, PK2, PL1, QA1, QD1

IEC61174 Ed. 3

S-57 Ed. 3.1.1

S-52 PresLib Ed. 3.4

S-52 Ed. 6.0

S-63 Ed. 1.1.1

S-64 Ed. 2.0.0



ver. RA1

IEC61174 Ed. 4

S-57 Ed. 3.1.1

S-52 PresLib Ed. 4.0

S-52 Ed. 6.1

S-63 Ed. 1.2.0

S-64 Ed. 3.0.2
