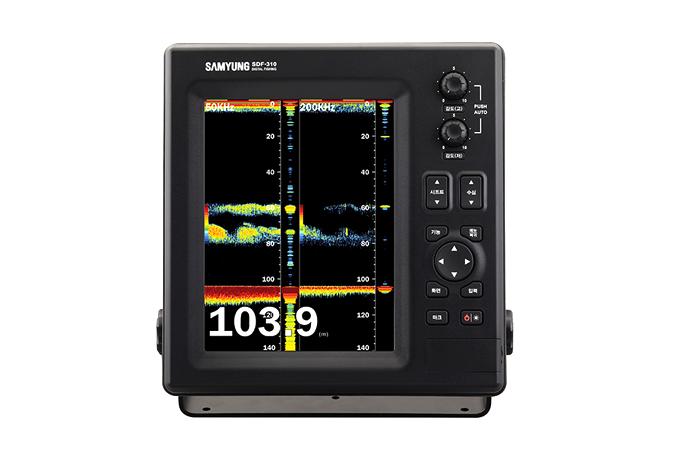

Features
• Easy and quick gain setting control
- When gain changes are applied, the previous echoes are applied at the same as the new echoes
- Allows to display weakly recorded fish group
• Allows to display weakly recorded fish group
- 30% increase of transmitting speed allows more detailed fish school to be displayed
• Fine tuning of transmitting frequency
- Fine tuning over all frequencies including low and high transmitting frequencies
• Progressed image processing technology
- Express image with various filtering process : Interference removal, noise removal, clutter, color removal and digital filter area setting
• Selectable display color
- Use may select preferable color display
• Display area detected on A-SCOPE
- Display area of seabed transmitted by the beam angle from transducer on A-scope to increase ease of work
- Beam angle may vary depending on the frequency of the transducer and the installation method. The data displayed on the equipment should be used for reference only
• Multi-frequency and the output
- The selection of transducers with various frequencies and output is available
- 28/38/50/68/82/88/107/150/200 kHz
- Dual frequencies
- Transmission output can be selected from 1/1.2/1.5/2.5/3KW
- Connectable with past transducers
• Display white line
- White line applied to easily discern seabed from the fish school or reef
* Display the strong signal from seabed in the white line in order to easily distinguish between fish group and seabed
• Digital filter technology
- Digital filter technology applied to display the weakest echoes from small fish and reduce noise at the same time
Specifications
• General
- Operating Frequencies : Dual Frequencies(50/200 kHz)
- Output Power : 1/1.2/1.5/2/2.5 /3 kW
- Power Reduction : 10 ~ 100 % (in 10 % step)
- User Frequency : 28/38/50/55/68/75/82/88/95/100/107/150/200 kHz(2 Frequencies selection)
• Display
- Display : 10.4" color LED (SVGA: 800 x 600)
- Color : 8/16/32/64 color
- Brightness : 500 cd/m2
- Tx Rate : 20 ~ 3000/min
- Pulselength : Standard/Short/Middle/Long
- Rx Band : Narrow/Standard/Wide
- Amplifier : High dynamic range
- Ranges : 3 ~ 3000 m
- Shift : 0 ~ 2000 m
- Display Mode : Single(LF/HF), Dual, Single+Zoom, Custom modes 1,2,Zoom mode(Bottom lock, Bottom zoom, Marker zoom), MIX mode, Nav data, A-scope
- Picture Advance Direction : Left, Right
- Picture Advance Speed : Stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1
- Alarms : Audio, Fish, Depth, Water temperature, Nav data
- Others : Auto Mode, Color Erase, Interference, TVG, Clutter,Temp Graph, A-scope, White Marke
• ENVIRONMENTAL CONDITIONS
- Operating Temperature : -15℃ ~ +55 ℃
• DATA INTERFACE
- Data Interface : NMEA 0183
• POWER SUPPLY
- Power Supply : 12/24 VDC, 50W max.
• EQUIPMENT LIST
- Standard : Display Unit, Transducer(1/1.2/1.5/2/2.5/3KW), Installation Materials and Standard Spare Parts
- Option : Speed/Temperature Sensor, Temperature Sensor NMEA Cable, Rectifier
