A popular Type Automation+Engine Control System
Model SM-980+SM-985
Series Auto Pilot System
Catalog samyung-enc_67778_xqqwmq.pdf
Product Description

Features

• Can install easily on board which manually operated existing hydraulic system

• Can control clutch, reduction gear and direction steering by remote control at any places of the ship

• Can control the ship's direction towards destination in connection with GPS plotter without person

• Can save the fuel consumption owint to navigation in straight line without an error by using newly developed electronic compass

• Can monitor the ship;s trace by displaying her direction on remote controller

• Operating Votage for steering and electronic lever : DC20 ~40V (Rated Voltage 24V)

• Direction resolution : 0.5 deg (Electronic Compass)

• Direction setting resolution : 1 deg.

• GPS plotter I/F (Connection signal) : RS-232C(NMEA-0183)

• Using Temperature : -20°C~ + 60°C

• Power Consumption : MAX 50W



Specifications

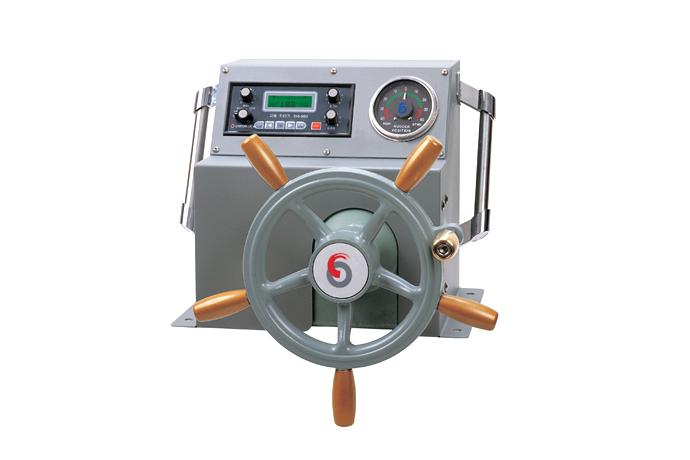

• Steering Controller(SM-980)

• Auto Conversion Pump(AC-12)

  (Handle, Heiium Pump, Gear, Electronic Clutch including DC Motor)

• Terminal Box(CT-70)

• Electronic Compass(ES-95)

• Angle Sensor(FS-80)

• Remote Controller(RC-10)/(RC-30)->SM-980+975

• Angle Indicator(FM-80)

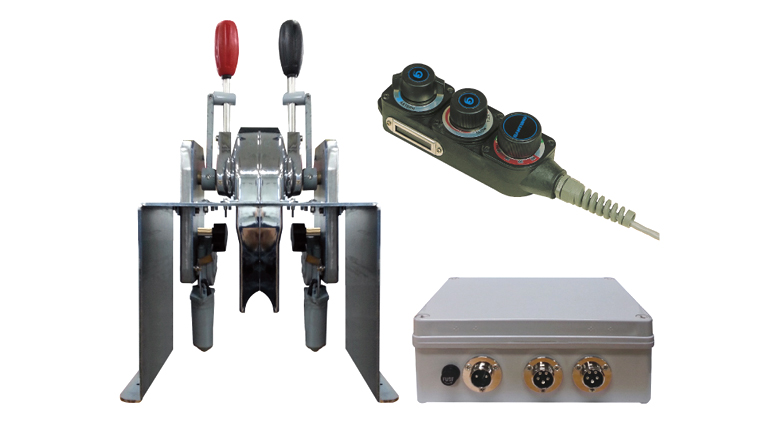

• Electronic Lever(SM-975)
