Name

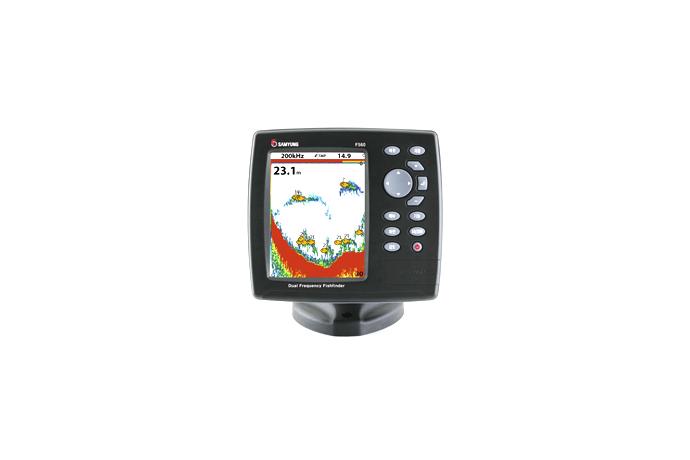

Color Fish Finder(5.6")

Model F560
Series Fishing Equipment
Catalog samyoung-enc_55314_rbzbav.pdf
Product Description

Features

• 5.6”high resolution TFT LCD
• Fast screen response by high performance CPU
• Suitable for small fishing boat
• Easy to use by icon menu
• Easy to distinguish fish on bottom by digital enlargement
• Reinforce fish detection by auto pulse
• Detect fish by high data transmission
• Easy to use by auto gain
• 10-step adjustable LED backlight
• Multiple languages available including English, Chinese, Russian, Thai, Malay etc.



Specifications

• Display : 5.6“, TFT 256 color, 480 x 640 pixels
• Frequency : 50/200KHz
• Output: 600W
• Depth Range : Min : 0m~3m, Max : 0m~1,500m
• Color Display : 16 colors
• Brightness : 10-step
• Screen Moving Speed : super fast, fast, medium, low, stop
• Alarms : too shallow, too deep, fish, temperature, temperature rate, low battery, dangerous AIS vessels.
• Battery Voltage Display : Voltage number dispaly
• AUTO GAIN adjustment : OFF/ON
• A-Mode display : OFF/ON
• Demo dispaly : OFF/ON
• Weak Color Removal : 0%~75%
• Operation temp : -15℃ ~ 55℃
• Supply Voltage : DC 10 ~ 34V
• Consumption Power : less than 12W
• Data Input/Output : NMEA0183, NMEA2000
• Size : 164 mm(H) x 183 mm(W) x 74 mm(D)
