Name

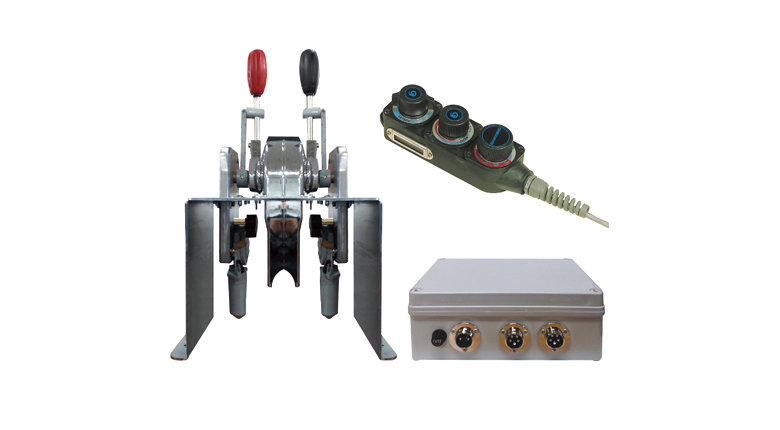

Auto Pilot + Engine Control System

Model SAS-7+SM-985
Series Auto Pilot System
Catalog samyoung-enc_55322_yhnsma.pdf
Product Description

Features

• improved bearing accuracy by using integrated circuit electronic compass

• All infomation in one large LCD screen

• Able to compensate difference on electronic compass automatically by ship turning 360°

• Efficient to corrective action as angle regulator is in same location

• Self-diagnosis fuction when alert message occurs.

• Manless piloting is possible to destination by connecting to GPS Plotter.





Specifications

 • Power Consumpion : DC18~32V(Rated Voltage 24V), Max 15W

 • Heading angle resolution : 0.5° (Electronic Compass)

 • Direction setting resolution : 1°

 • GPS plotter I/F(Connection signal) : RS-232C (NMEA-0183)

 • Using Temperature : -15°C ~+55°C

 • Signal output of solenoid : Max. 3A, + Common, -Output
