Name

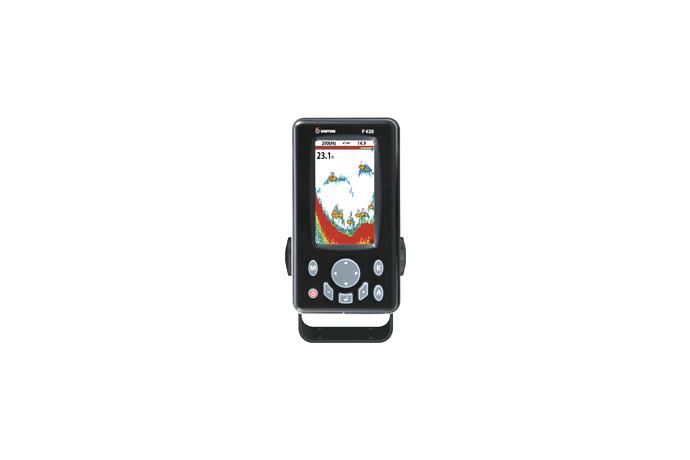

Color Fish Finder(4.3")

Model F430
Series Fishing Equipment
Catalog samyoung-enc_55312_utctpu.pdf
Product Description

Features

• 4.3” high resolution TFT LCD
• Fast screen response by high performance CPU
• Suitable for small fishing boat
•  Save internal data on SD card
• Easy to distinguish fish on bottom by digital enlargement
• Reinforce fish detection by auto pulse
• Detect fish by high data transmission
• Easy to use by auto gain
• 10-step adjustable LED backlight
• Multiple languages available including English, Chinese, Russian, Thai, Malay etc.
• Available SD card Slot



Specifications

• Display : 4.3“ , TFT 256 color, 272 x 480 pixels
• Frequency : 200KHz
• Output : 300W
• Depth Range : Min : 0m~3m, Max : 0m~150m
• Color Display : 16 colors / 8 colors
• Brightness : 10-step
• Screen Moving Speed : super fast, fast, medium, low, stop
• Alarms : too shallow, too deep, fish, temperature, temperature rate, low battery
• Battery Voltage Display : Voltage number dispaly
• AUTO GAIN adjustment : OFF/ON
• A-Mode display : OFF/ON
• Demo dispaly :OFF/ON
• Weak Color Removal : 0%~75%, STC
• Operation temp. : -15°C ~ 55°C
• Supply Voltage : DC 10 ~ 32V
• Consumption Power : 12W
• Data Input/Output : NMEA0183
• Size : 183 mm(H) x 101 mm(W) x 58 mm(D)
