Product Description

PRODUCT SPEC

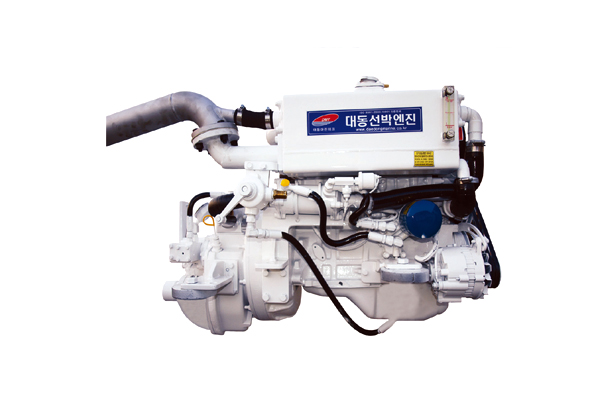

ENGINEENGINE MODEL MODEL		DD4AF
형식		4 CYCLE IN-LINE
출력/회전수		80/4000
실린더수		4
실린더x행정	mm	91.1×100
배기량	cc	2,607
압축비		22:1
연소방식		D/I
흡입방식		N/A
사용연료		DIESEL LIGHT OIL
연료소비율		220
사용윤활유		API CLASS “CC””CD”
냉각방식		FRESH WATER COOLING WITH CENTRIFUGAL PUMP
연료분사펌프		BOSCH TYPE
윤환류소모량		0.95
스타팅시스템		ELECTRIC STARTING (DC24V)
감속장치	MODEL	DMT18A
감속장치	RATIO	1.64~3.32
면적	L	1,090
	W	700
	H	830
무게(kgs)		320

선박용 외형 치수

기본 외형치수

기종	감속기 부착 사양	A	B	C	D	E	E	F	G	H	J	L	M(M)	N	O	P	Q	R	S	T
DD4BB	18AL	605	1036	941	500	67.1	67.1	428	220	350	70	60	550	119	1″	11″	799	185	242	244
DD4AF	25A	654	1120	870	500	68.7	68.7	557	285	507	70	60	600	118.7	1″	1″	826	151.5	242	243.7
DD4DA	25AL	760	1120	820	500	68.7	68.7	557	285	507	70	60	600	118.7	1″	1″	826	151.5	242	243.7
DD4DD	50A	620	1261	961	620	605	185	505	275	520	72	72	605	150	11/4″	11/4″	986	200	243	301
DD6GA	70T	640	1545	888	500	95.5	95.5	804	380	720	100	70	640	160.5	11/4:	11/4″	1164	219.5	252	323.5
DD6AZ	90A	700	1540	1050	620	130	184.5	750	430	680	80	80	700	1605	11/2″	11/4	1110	200	340	323
DD6ATZ	110A	900	1690	7087	580	200	200	919.6	480	850.6	90	90	700	195	11/2″	11/4″	1329.6	238.2	306	388
DD6AT2	140H	900	1739	1087	580	200	200	919.6	480	8503.6	90	90	700	195	2″	11/4″	1338.6	238.2	342	388
DD6AC	140H	900	1739	1087	580	200	200	919.6	480	850.6	90	90	700	195	2″	11/4″	1338.6	238.2	342	388
DD6HA	150H	900	1996	1200	800	190	245	925	490	825	90	90	770	190	2″	11/4″	1366	238.2	320	438
DD6CC	240H	920	2130	1308.3	620	178.2	293	971.5	457	907.6	90	90	700	211.3	2″	11/4″	1427.7	271	381	458
DD6CE	P7500	920	2130	1450	620	178.2	293	971.5	457	907.6	90	90	700	227	2″	11/4″	1427.7	271	381	634
