Product Description

PRODUCT SPEC.

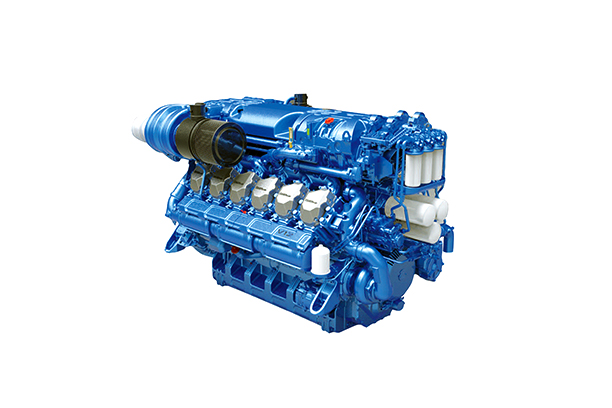

ENGINE MODEL		12M26.3
ENGINE MODEL		P2			P3
정격출력(Stand-by Power)	HP	1,320	1,400	1,500	1,650
정격출력(Stand-by Power)	KW	970	1,030	1,104	1,214
회전수(RPM)		1,800	2,100	2,200	2,300
실린더수 (No. of Cylinder)		12 in V @ 90°
보어x스트로크(Bore x Stroke)	mm	150 x 150
배기량(Displacement)	cc	31,801
회전방향(Rotation Direction)		CCW (ISO 1204 standard)
착화순서(Firing Order)		1-8-5-10-3-7-6-11-2-9-4-12
흡입방식(Aspiration)		터보과급 후 냉각 (Turbocharged aftercooled)
연료소비율(Fuel Consumption)	g/KWh	201	204	209	215
연료소비율(Fuel Consumption)	l/h	232	250	275	311
공회전속도(Idle Speed)	RPM	600
플라이휠 하우징(Flywheel Housing)	SAE	#0
플라이휠(Flywheel)	SAE	#18
해수유입구(Raw Water Inlet Size)	mm	Ø inn 76.1
해수배출구(Raw Water Oulet Size)	mm	Ø inn 76.1
배기구 사이즈(Exhaust Pipe Size)	mm	Ø inn 260 / Ø out 278
크기(Dimension) (mm)	Length	2,333
	Width	1,350
	Heigth	1,494
중량 (Weight)	KG	3,215
감속장치 모델 (Reduction Gear Model)		DMT600DL	DMT561HL	DMT550H	DMT600DL
감속장치 감속비 (Reduction Gear Ratio)		3.02-4.95	3.02-4.95	1.43-2.03	3.02-4.48
(엔진+감속기 셋트 ) Dimension (mm)	Length	2,982	2,875	2,805	2,982
	Width	1,350	1,350	1,350	1,350
	Heigth	1,745	1,745	1,740	1,745
중량 (Weight)	KG	4,570	4,230	4,295	4,570
