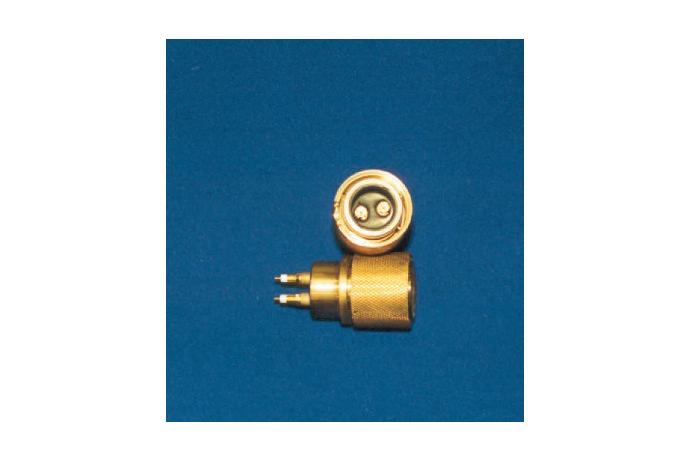

Surface Mateable Coaxial Connectors (Metal Keyed / Rubber Keyed)
HYB (Hydrobond Hybrid) and HRS (Hydrobond Rubber Sealing)
Features
- Proven Shock Tested Design
- Metal Key provides positive scoop proof connection (HYB only)
- Fully pressure blocked 50-Ohm and 75-Ohm coaxial inserts (HYB only)
- Coaxial insert trace tested to 1.6 GHz
- HYB Type tested to 86 Bar open face pressure
- HRS Connectors Depth rated to 2,450 MSW mated
- Metal Shell Construction
- Available in 2 shell sizes
- Bulkhead Mount and Panel Mount Designs available as standard
- Mounting O – Ring seals and optional Barrel seals available as standard
- Coaxial densities up to 4 of 50-Ohm or 75-Ohm Coaxial paths
- Available in Nickel Aluminium Bronze or 316 Stainless Steel and Titanium etc on request
- 0.75 metre coaxial tails on all bulkhead connectors as standard with other lengths on request
- Optional Earth Bonding
- Optional Cathodic delamination version available
- Moulding options include Polyurethane and or Polyethylene
Application field
- Easy to use
- Proven Shock tested design
- 50-Ohm and 75-Ohm coaxial paths allow noise free high data rate transmission
- Wide variety of metal options allows for best corrosion resistant design
