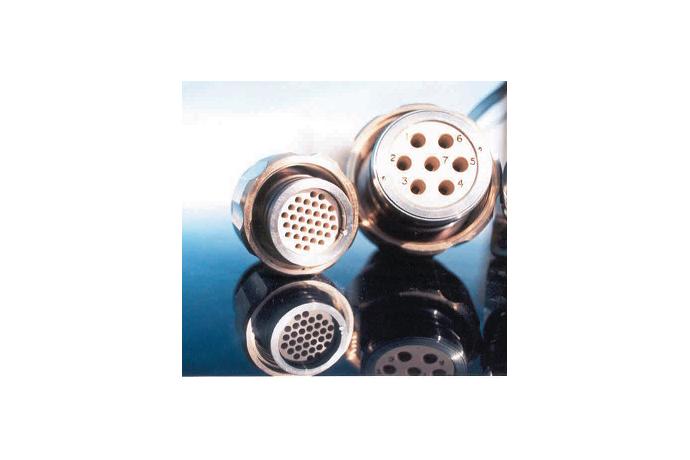

Surface Mateable High Density Metal Keyed Electrical Connectors
HDM (Hydrobond Deck Mate)
Features
- Robust, Compact, High Integrity Design
- Proven shock and vibration tested design
- High Pin Densities
- Positive Metal Key Way prevents misalignment and rotation
- Scoop proof design
- Barrel O – Ring seals for ease of maintenance and reliability
- Locking grub screws on coupling ring
- Depth rated to 3,450 MSW standard version. (6,900 MSW on request)
- Fully open face pressure sealed
- Available in 6 shell sizes
- Bulkhead Mount and Panel Mount Designs available as standard
- Mounting O – Ring face seals and optional Barrel seals available as standard
- Pin Densities from 3 to 73 ways
- Hard Gold Plated Contacts and Multi Leaved Sprung Sockets for positive connection
- Acetal dust caps included on all connectors (additional lanyards on request)
- Optional cost effective pressure sealing caps are available in a wide variety of materials
- Voltage ratings up to 3,300 Volts RMS
- Current ratings up to 95 Amps with higher ratings on request
- Standard and Reverse gender configurations available
- Available in 316 Stainless Steel as standard, Titanium, Aluminium Silicon Bronze, Nickel Aluminium Bronze etc on request
- Non Magnetic versions available
- 1 metre conductor tails on all bulkhead connectors as standard
- Optional Earth Bonding
- Termination options include fully water blocked, mechanical strain terminations and oil filled options
- Moulding options include Polyurethane and Polyethylene
Application field
- Long life connector with easily maintained O – Ring seals.
- Designed for continual mate and de mate usage
- Easy to use pressure sealing caps
- Individual conductor Boot Seals allow mating in adverse conditions.
- Provides the best protection for your expensive electronics.
- Pins are protected during mating cycle
- Extremely cost effective
- Space saving high pin density designs require less space
- Wide variety of pin configurations allows cost effective system design
- Standard and reverse gender configurations allow for safe system design
- Wide variety of metal options allows for best corrosion resistant design
