Electrical Penetrators for Manned & Unmanned Systems
HPS (Hydrobond Penetrator Series)
Features
- Fully pressure blocked

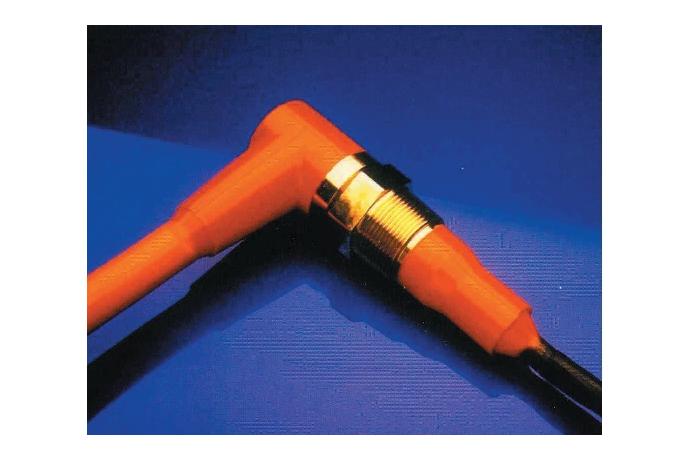

- Right Angled or In Line designs
- Smooth Bore O-Ring sealed NPT, UNF, Flanged seal and other sealing configurations available
- Robust Design
- Mono and bi-directional Pressure Designs
- Mono Directional depth rated to 1,500 MSW with additional depth ratings available on request
- Bi-Directional Manned pressure vessel depth rated to 455 MSW
- Electrical, Coaxial and Optical designs available
- Inboard conductor tails meet requirements for manned systems
- Wide variety of outboard composite cable designs available
- Lloyd’s, DNV, ABS and other third party tests certificates available on request
- Metal Shell Construction
- Mounting O – Ring face seals and optional Barrel seals available as standard
- Voltage ratings up to 3,000 Volts RMS
- Current ratings up to 140 Amps with higher ratings available on request
- Available in 316 Stainless Steel as standard or Titanium, Aluminium Silicon Bronze etc on request
- Non Magnetic versions available
- Optional Earth Bonding
- Optional Cathodic delamination version available
- Termination options include fully water blocked, moulded to cable or oil filled options
Application field
- Easy to use
- Cost effective
- Less connections to worry about
- Low optical losses
- Low failure rate
- Fast Delivery lead times
- Wide variety of insert configurations allows cost effective system design
- Wide variety of metal options allows for best corrosion resistant design
