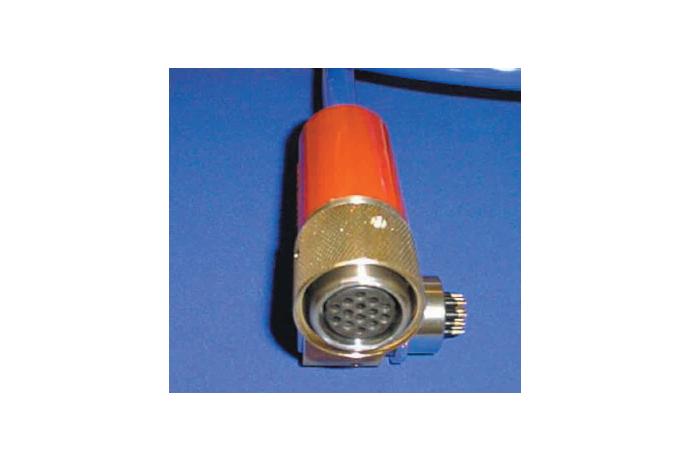

Underwater Mateable Electrical Connector (Metal Keyed)
HMK (Hydrobond Metal Keyed) Connector
Features
- Underwater Mateable
- Positive metal key prevents misalignment and rotation
- Scoop proof
- Proven shock tested design
- Depth rated to 2,440 MSW, higher pressure rated versions available on request
- Fully open face pressure sealed
- Metal Shell Construction protects contacts from mechanical stress
- Available in 5 shell sizes
- Bulkhead Mount and Panel Mount Designs available as standard
- Mounting O – Ring face seals and optional Barrel seals available as standard
- Acetal dust caps included on all connectors (additional lanyards on request)
- Pin Densities from 1 to 70 ways
- Voltage ratings up to 3,300 Volts RMS
- Current ratings up to 400 Amps
- Standard and Reverse gender configurations available
- Available in 316 Stainless Steel as standard or Titanium, Aluminium Silicon Bronze, Nickel Aluminium Bronze etc on request.
- Non Magnetic versions available
- 1 metre conductor tails on all bulkhead connectors as standard with other lengths on request
- Optional Earth Bonding
- Optional Cathodic delamination version available
- Termination options include fully water blocked, mechanical strain terminations and oil filled options
- Moulding options include Polyurethane and Polyethylene
Application field
- Cost effective diver mateable solution
- Excellent connector protection
- Improved pin to socket contact
- Easy to use
- Interchangeable mounting with HRS series connectors
- Wide variety of pin configurations allows cost effective system design
- Standard and reverse gender configurations allow for safe system design
- Wide variety of metal options allows for best corrosion resistant design
