Name	Tee (Reducing tees)
Series	FORGED FTTING

Product Description

MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe

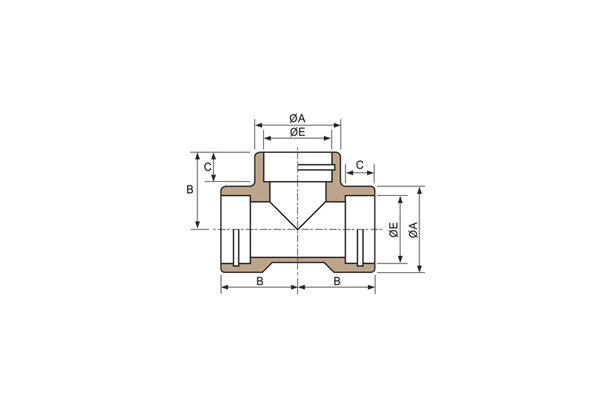

Outside diameter of pipe ØD						ØA mm	B mm	ØE mm	C mm	ØG mm	H mm	Theoretical weight
nominal inch			actual mm			ØA mm	B mm	ØE mm	C mm	ØG mm	H mm	kg/piece
1/2	x	1/8	20	x	16	26.5	25	20.1	10	16.1	10	0.14
3/4	x	1/8	25	x	16	33.0	29	25.1	13	16.1	10	0.37
3/4	x	1/2	25	x	20	33.0	29	25.1	13	20.1	10	0.35
1	x	1/8	30	x	16	38.0	34	30.1	13	16.1	10	0.47
	x	1/2		x	20					20.1	10	0.45
	x	3/4		x	25					25.1	13	0.41
1 1/4	x	1/8	38	x	16	46.0	38	38.1	13	16.1	10	0.83
	x	1/2		x	20					20.1	10	0.81
	x	3/4		x	25					25.1	13	0.77
	x	1		x	30					30.1	13	0.73
1 1/2	x	1/8	44.5	x	16	56.0	44	44.6	13	16.1	10	1.35
	x	1/2		x	20					20.1	10	1.33
	x	3/4		x	25					25.1	13	1.29
	x	1		x	30					30.1	13	1.25
	x	1 1/4		x	38					38.1	13	1.17
2	x	1/8	57	x	16	63.5	50	57.3	16	16.1	10	1.89
	x	1/2		x	20					20.1	10	1.87
	x	3/4		x	25					25.1	13	1.83
	x	1		x	30					30.1	13	1.79
	x	1 1/4		x	38					38.1	13	1.71
	x	1 1/2		x	44.5					44.6	13	1.62
