Name	Elbow (Elbows 45° Short)
Series	Butt Weld Fittings

Product Description

Elbows 45° Short

MATERIAL : DHM 10® CuNi 90/10

DIMENSION :
- DIN 86090
- EEMUA 146 16Bar/20Bar

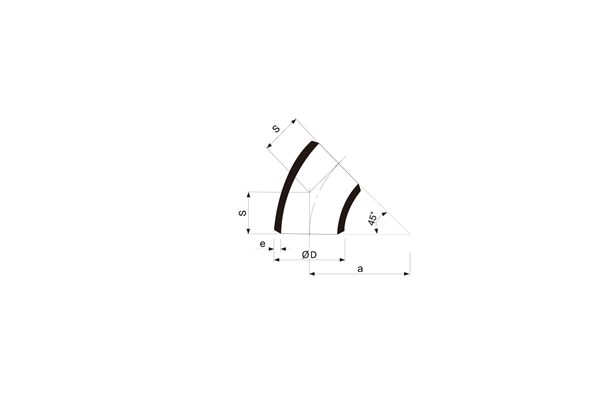

Outside diameter of pipe ØD		Wall thickness	Radius		Theoretical weight
nominal inch	actual mm	e mm	a mm	s mm	kg/ piece
SEAMLESS
1/2	20	1	25	10.4	0.01
3/4	25	1.5	27.5	11.4	0.02
1	30	1.5	33.5	14	0.03
1 1/4	38	1.5	45	19	0.05
1 1/2	44.5	1.5	51	21	0.07
2	57	1.5	72	30	0.13
2 1/2	76.1	2	95	39	0.30
3	88.9	2/■2.5	114.5	47	0.43/0.54
4	108	2.5	142.5	59	0.82
5	133	2.5/■3	181	75	1.29/1.55
6	159	2.5	216	89	1.85/2.22
7	193.7	■3	270	112	2.82/3.94
8	219.1	3/■3.5	305	126	4.33/5.04
SEAMLESS or SEAM WELDED
10	267	3/■4	378	157	6.55/8.73
12	323.9	4/■5	457	189	12.80/16.00
14	368	4/■5.5	533.5	221	17.00/23.37
16	419.1	4/■6	609.5	252	29.90/33.20
SEAM WELDED
18	457.2	4/■6	686	284	30.70/46.05
20	508	4.5/■6.5	762	316	41.90/62.85
24	610	5/■8	915	379	60.62/97.00

Outside diameter of pipe ØD		Wall thickness	Radius		Theoretical weight
nominal inch	actual mm	e mm	a mm	s mm	kg/ piece
SEAMLESS
1	30	2.5	38	22	0.06
1 1/4	38	2.5	48	25	0.09
1 1/2	44.5	2.5	57	29	0.13
2	57	2.5	76	35	0.23
2 1/2	76.1	2.5	95	44	0.38
3	88.9	2.5	114	51	0.54
4	108	3	152	64	1.05
6	159	3	229	95	2.35
SEAMLESS or SEAM WELDED
8	219.1	4	305	127	5.75
10	267	4.5	381	159	9.85
12	323.9	5.5	457	190	17.53
SEAM WELDED
14	368	6.5	533	222	27.46
16	419.1	7	610	254	38.50
18	457.2	8	686	286	54.10
20	508	8.5	762	318	70.93
24	610	10.5	914	381	126.42
28	711	12	1067	438	196.30
32	813	13.5	1219	502	288.00
36	914	13.5	1372	565	418.60
