Name	Elbow (Elbows short radius 10 / 14 BAR)
Series	Butt Weld Fittings

Product Description

Elbows short radius 10 / 14 BAR (R~1D - 90º)

MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe

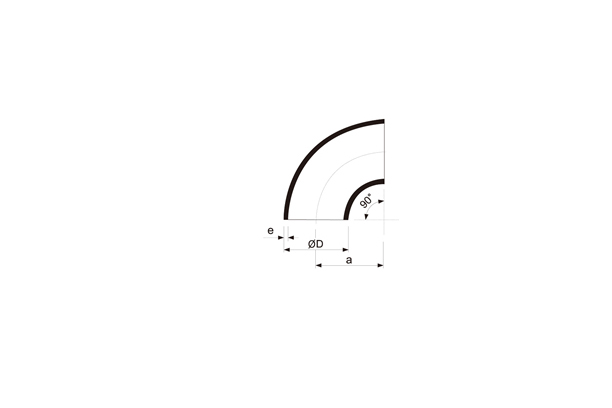

DIMENSION : Extrapolated from DIN 86090

Outside diameter of pipe ØD		Wall thickness e mm	Radius a mm	Theoretical weight kg/piece
nominal inch	actual mm	Wall thickness e mm	Radius a mm	Theoretical weight kg/piece
SEAMLESS
1	30.0	1.5	30	0.04
1 1/4	38.0		32.5	0.08
1 1/2	44.5		40	0.12
2	57.0		52.5	0.20
2 1/2	76.1	2	70	0.44
3	88.9	2	82.5	0.64
3	88.9	■ 2.5	82.5	0.80
4	108.0	2.5	100	1.16
5	133.0	2.5	125	1.80
5	133.0	■ 3	125	2.16
6	159.0	2.5	150	2.60
6	159.0	■ 3	150	3.12
7	193.7	2.5	180	3.80
7	193.7	■ 3.5	180	5.32
8	219.1	3	210	6.00
8	219.1	■ 3.5	210	7.00
SEAMLESS or SEAM WELDED
10	267.0	3	255	8.80
10	267.0	■ 4	255	11.74
12	323.9	4	305	17.20
12	323.9	■ 5	305	21.50
14	368.0	4	352.5	22.60
14	368.0	■ 5.5	352.5	31.08
SEAM WELDED
16	419.1	4	400	32.80
16	419.1	■ 6	400	43.74
18	457.2	4	455	40.80
18	457.2	■ 6	455	61.20
20	508.0	4.5	505	56.20
20	508.0	■ 6.5	505	84.30
24	610.0	5	610	81.80
24	610.0	■ 8	610	130.90
