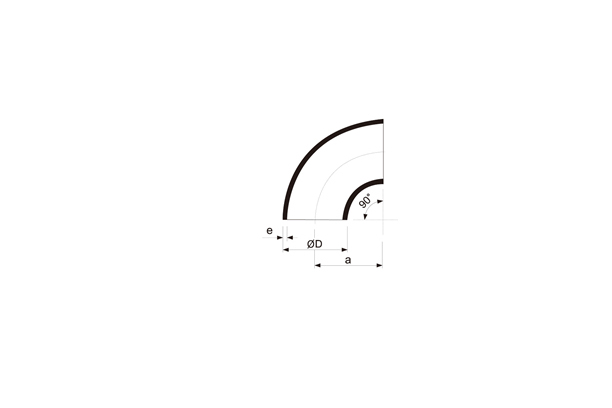

Elbows long radius 16 / 20 BAR (R~1.5D - 90º)
MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe
DIMENSION : EEMUA Pub. N。146
| Outside diameter of pipe ØD | Wall thickness | Radius | Theoretical weight | |||
|---|---|---|---|---|---|---|
| nominal inch | actual mm | 16Bar e mm | 20Bar e mm | a mm | 16Bar kg/piece | 20Bar kg/piece |
| SEAMLESS | ||||||
| 1 | 30.0 | 2.5 | 2.5 | 38 | 0.12 | 0.12 |
| 1 1/4 | 38.0 | 2.5 | 2.5 | 48 | 0.18 | 0.18 |
| 1 1/2 | 44.5 | 2.5 | 2.5 | 57 | 0.26 | 0.26 |
| 2 | 57.0 | 2.5 | 2.5 | 76 | 0.46 | 0.46 |
| 2 1/2 | 76.1 | 2.5 | 2.5 | 95 | 0.76 | 0.76 |
| 3 | 88.9 | 2.5 | 2.5 | 114 | 1.08 | 1.08 |
| 4 | 108.0 | 3 | 3.0 | 152 | 2.10 | 2.10 |
| 6 | 159.0 | 3 | 3.5 | 229 | 4.70 | 5.48 |
| 8 | 219.1 | 4 | 4.5 | 305 | 11.50 | 12.94 |
| 10 | 267.0 | 4.5 | 5.5 | 381 | 19.70 | 24.08 |
| 12 | 323.9 | 5.5 | 7.0 | 457 | 35.06 | 44.60 |
| SEAMLESS or SEAM WELDED | ||||||
| 14 | 368.0 | 6.5 | 8.0 | 533 | 54.90 | 67.60 |
| 16 | 419.1 | 7 | 9.0 | 610 | 77.00 | 99.00 |
| SEAM WELDED | ||||||
| 18 | 457.2 | 8 | 9.5 | 686 | 108.20 | 128.50 |
| 20 | 508.0 | 8.5 | 11.0 | 762 | 141.86 | 183.60 |
| 24 | 610.0 | 10.5 | 13.0 | 914 | 252.94 | 313.30 |
| 28 | 711.0 | 12 | 15.0 | 1067 | 392.60 | 490.80 |
| 32 | 813.0 | 13.5 | 17.0 | 1219 | 577.90 | 727.70 |
| 36 | 914.0 | 15.5 | 19.0 | 1372 | 837.20 | 1026.26 |
