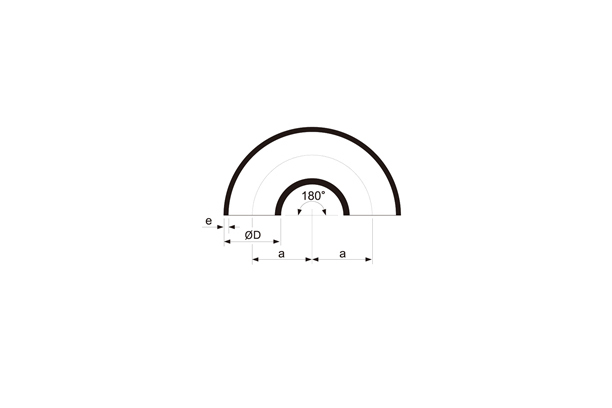

Elbows long radius 10 BAR(R~1.5D - 180º)
MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe
DIMENSION : DIN 86090
| Outside diameter of pipe ØD | Wall thickness | Radius | Theoretical weight | |
|---|---|---|---|---|
| nominal inch | actual mm | e mm | a mm | kg/ piece |
| SEAMLESS | ||||
| 1/2 | 20.0 | 1.0 | 25.0 | 0.04 |
| 3/4 | 25.0 | 1.5 | 27.5 | 0.08 |
| 1 | 30.0 | 1.5 | 33.5 | 0.12 |
| 1 1/4 | 38.0 | 1.5 | 45.0 | 0.20 |
| 1 1/2 | 44.5 | 1.5 | 51.0 | 0.28 |
| 2 | 57.0 | 1.5 | 72.0 | 0.52 |
| 2 1/2 | 76.1 | 2.0 | 95.0 | 1.22 |
| 3 | 88.9 | 2.0 | 114.5 | 1.74 |
| ■2.5 | 114.5 | 2.10 | ||
| 4 | 108.0 | 2.5 | 142.5 | 3.28 |
| 5 | 133.0 | 2.5 | 181.0 | 5.16 |
| ■3.0 | 181.0 | 6.20 | ||
| 6 | 159.0 | 2.5 | 216.0 | 7.40 |
| ■3.0 | 216.0 | 8.88 | ||
| 7 | 193.7 | 2.5 | 270.0 | 11.30 |
| ■3.5 | 270.0 | 15.70 | ||
| 8 | 219.1 | 3.0 | 305.0 | 17.32 |
| ■3.5 | 305.0 | 20.70 | ||
| 10 | 267.0 | 3.0 | 378.0 | 26.20 |
| ■4.0 | 378.0 | 34.90 | ||
| 12 | 323.9 | 4.0 | 457.0 | 51.22 |
| ■5.0 | 457.0 | 64.00 | ||
| SEAMLESS or SEAM WELDED | ||||
| 14 | 368.0 | 4.0 | 533.5 | 68.00 |
| ■5.5 | 533.5 | 93.40 | ||
| 16 | 419.1 | 4.0 | 609.5 | 88.64 |
| ■6.0 | 609.5 | 132.80 | ||
| SEAM WELDED | ||||
| 18 | 457.2 | 4.0 | 686.0 | 108.94 |
| ■6.0 | 686.0 | 145.26 | ||
| 20 | 508.0 | 4.5 | 762.0 | 151.24 |
| ■6.5 | 762.0 | 251.00 | ||
| 24 | 610.0 | 5.0 | 915.0 | 242.48 |
| ■8.0 | 915.0 | 388.00 | ||
