Reliable, Easy-to-Use Electronic Cash Register
NR-500 series is a powerful solution suited for a wide range of retail and hospitality operations. This model is convenient to use as it provides the operator a high-visible display and other advance features.
- Wide Multi Line Graphic Display
- 16 Char. x 2 Line LCD Rear Display
- Easy Data Back up, Restore and Report
- Electronic Journal Printer
| Model | NR-510/510R | NR-520/520R | |
|---|---|---|---|
| Printer | Type | 1 Station Thermal | 2 Station Thermal |
| Speed | 70mm/sec (18 lines/sec) | ||
| Paper Width | 57.5mm (1EA) | 57.5mm (2EA) | |
| Paper End Sensor | YES | ||

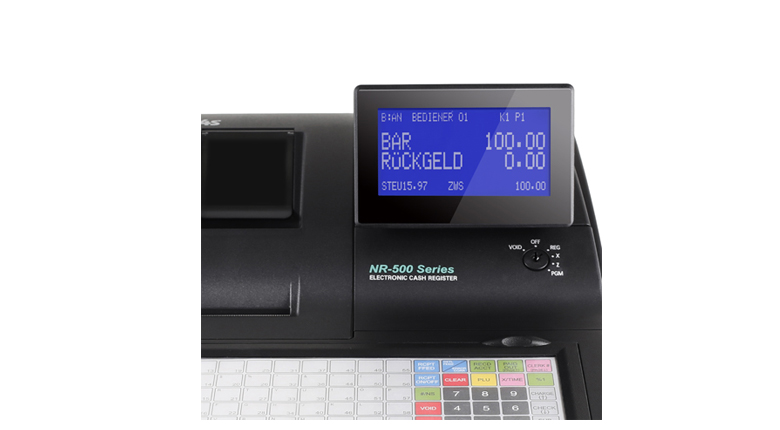

| Display | Operator | 192 x 64 Graphic LCD or 16Character x 2Lines LCD | |

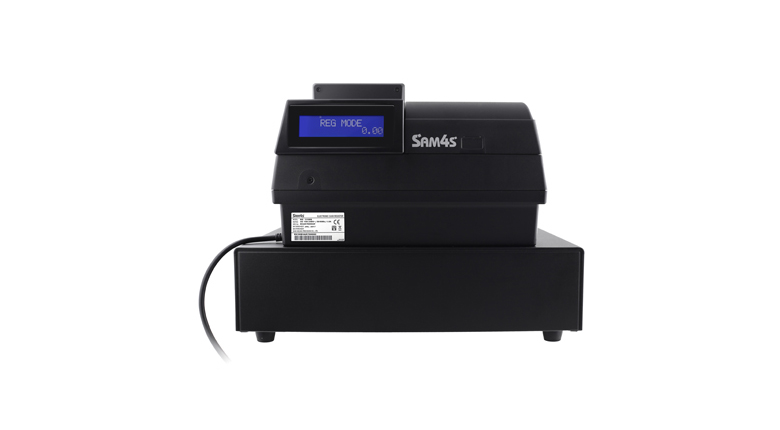

| Customer | 16Character x 2Lines LCD | ||
| keyboard | Flat | NR-510/NR-520 : 90 Flat Keys | |
| Raised | NR-510R/NR-520R : 48 Raised Keys | ||
| System | CPU | 32bit (Rx-631, Renesas) | |
| Memory | Program | 2MByte FLASH (CPU Internal) | |
| Data | 4Mbit SRAM | ||
| Ext. (Opt.) | 4Mbit SRAM (Total 8Mbit) | ||
| Data Storage | 60 Days | ||

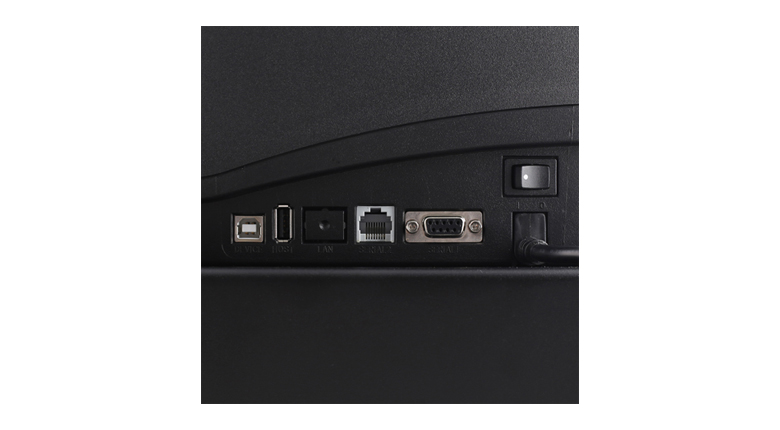

| Interface | RS-232C | 2 Ports (RJ45 x 1, D/SUB 9Pin x 1) | |
| USB | Host: 1 Port (Mass Storage) Device: 1 Port (Scanner/PC) (Host / Device Selectable) | ||
| Network | TCP/IP (10/100 Mbps) | ||
| GPRS Modem | Built-in | ||
| SD CARD | SDHC Compatible | ||

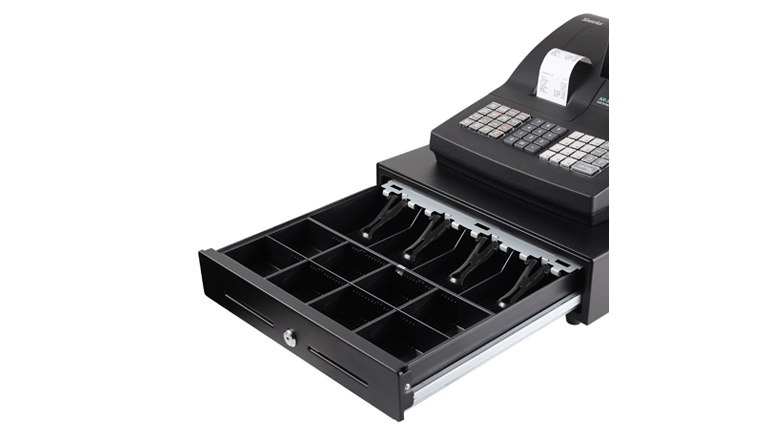

| Drawer | Port | 1 Port | |
| Environment Condition | Temperature | -5 ~ 45°C (23~113℉) | |
| Humidity | 30~80%RH | ||
| Peripherals | Operator Key, Scanner(Serial/USB), Remote Printer, Slip Printer, kitchen Printer, Scale, Pole Display, EFT POS Terminal | ||
| Power | AC 100~240V/50~60Hz | ||
| Dimension | 400(W)x450(L)x266(H) | ||
| Weight | Approx. 13kg | ||
| S/W | keyboard Departments | 12 / 60 | |
| PLU's | 1000(Max.8000) | ||
| Group | 20(Max.99) | ||
| Clerk | 10(Max.99) | ||
| TAX | VAT, ADD ON, TAX TABLE | ||
| Electronic Journal | YES (SD Card) | ||
| Euro Currency Conversion | YES | ||
| Graphics Logo | YES | ||
| Daily and Periodic Reporting | YES | ||
| Table Management | YES | ||
| PLU Descriptors size | 24 | ||
| F/W Update | PC/SD Card | ||
| PC Utility | Ethernet/Serial/USB | ||
