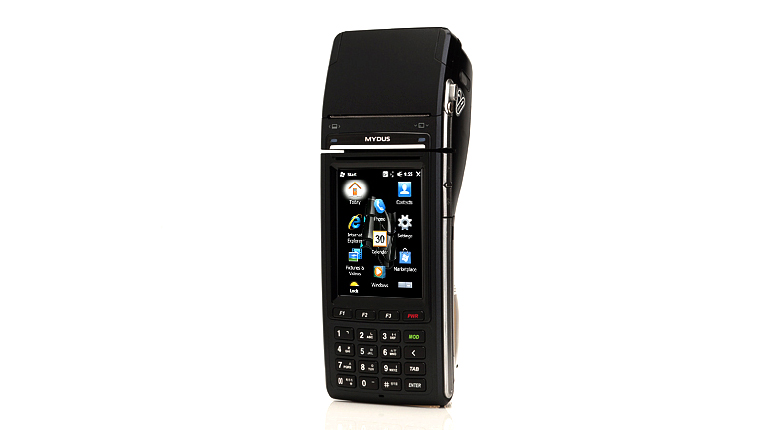

STM-7000 is the world best-selling integrated printer M-POS Terminal and No.1 industrial terminal. STM-7000 is All-In-One terminal that can be applied in various communication environments with many different options. Covering from M-POS, SFA to inventory and distribution management to asset management and public sector services, STM-7000 with luxurious design is equipped with various specifications.
- Integrated Printer, M-POS Terminal (EMV, PCI Certified)
- Can Process various Card Types - MSR, IC, RFID
- Large Screen and Buttons
- Luxurious Design (iF Design Award)
- Supports(HSDPA+/GPRS, WIFI, Bluetooth)
| Model | STM-7100 | STM-7700 | STM-7700PCI |
|---|---|---|---|
| CPU | PXA270, 520MHz | ARM11 800MHz | ARM11 800MHz |
| OS | Windows CE .NET 5.0 | Windows Embedded Handheld 6.5 Professional Windows CE .NET 5.0 | Windows Embedded Handheld 6.5 Professional Windows CE .NET 5.0 |
| Memory | 64MB NOR & 128MB NAND ROM | NAND Flash 512MB | NAND Flash 512MB |
| 128MB SDRAM | Mobile DDR SDRAM 128MB/256MB | Mobile DDR SDRAM 128MB/256MB | |
| Display | 240X320 3.5 Inch TFT LCD with Touch Screen | 240X320 3.5 Inch TFT LCD with Touch Screen | 240X320 3.5 Inch TFT LCD with Touch Screen |
| Keypad | Numeric | Numeric | Numeric |
| Communications | WLAN (IEEE802.11b/g) | WLAN (IEEE802.11a/b/g) | WLAN (IEEE802.11a/b/g) |
| GSM/GPRS/CDMA 1x | GSM/GPRS/EDGE/HSDPA | GSM/GPRS/EDGE/HSDPA | |
| Bluetooth 2.0 Class 2 | Bluetooth 2.0 Class 2 | Bluetooth 2.0 Class 2 | |
| GPS : Integrated SiRF Star 3 | GPS : Integrated SiRF Star 3 | GPS : Integrated SiRF Star 3 | |
| Printer | 2 Inch Thermal Printer | 2 Inch Thermal Printer | 2 Inch Thermal Printer |
| MSR | Triple Track support (Bi-directional) | Triple Track support (Bi-directional) | Triple Track support (Bi-directional) |
| IC Card | IC Card reader with 4 SAM, EMV Level I & II Certified, ISO 7816 | IC Card reader with 4 SAM, EMV Level I & II Certified, ISO 7816 | IC Card reader with 4 SAM, EMV Level I & II Certified, ISO 7816 |
| RFID | None | ISO14443 | ISO14443 |
| Scanner | Laser type 1D or CMOS Type 2D | Laser type 1D or CMOS Type 2D | Laser type 1D or CMOS Type 2D |
| Camera | 2.0 Mega Pixel | 2.0 Mega/ 5.0 Mega Pixel | 2.0 Mega/ 5.0 Mega Pixel |
| Audio | Speaker, Headset Jack | Speaker, Headset Jack | Speaker, Headset Jack |
| Expansion | Micro SD Card slot | Micro SD Card slot | Micro SD Card slot |
| Battery | 7.4V/2,000 mAh Rechargeable Li-ion | 7.4V/2,000 mAh Rechargeable Li-ion | 7.4V/2,000 mAh Rechargeable Li-ion |
| Cradle | USB Host/ Client (Mini B / Standard B), DC Jack, RS232C 9PINs, Battery Charging Slot | USB Host/ Client (Mini B / Standard B), DC Jack, RS232C 9PINs, Battery Charging Slot | USB Host/ Client (Mini B / Standard B), DC Jack, RS232C 9PINs, Battery Charging Slot |
| Operation Temp. | -10 ℃ to 50 ℃ | -10 ℃ to 50 ℃ | -10 ℃ to 50 ℃ |
| Storage Temp. | -20 ℃ to 60 ℃ | -20 ℃ to 60 ℃ | -20 ℃ to 60 ℃ |
| Humidity | 95% | 95% | 95% |
| Drop Spec | Stands 1.2 meter drop to steel | Stands 1.2 meter drop to steel | Stands 1.2 meter drop to steel |
| Physical Characteristics | Dimensions: 82.24(W) x 216.2(H) x 59.2(D)㎜ | Dimensions: 82.24(W) x 216.2(H) x 59.2(D)㎜ | Dimensions: 82.24(W) x 216.2(H) x 59.2(D)㎜ |
| Weight: 530 g (including battery) | Weight: 512 g (including battery) | Weight: 512 g (including battery) | |
| Certification | CE, FCC, KCC, CCC | CE, FCC, KCC, CCC | CE, FCC, KCC, CCC |
| Payment | Contact(EMV L1 & L2) | Contact(EMV L1 & L2) | Contact(EMV L1 & L2) |
| PIN(PCI PTS 2.0) |
