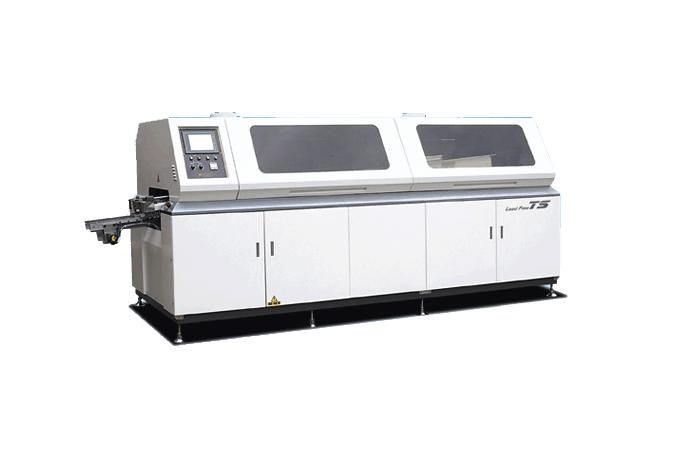

| ITM-205 SPECIFICATION | ||
| No. | ITEM | SPECIFICATION |
| 1 | Dimension | 3,220(L)*1,350(W)*1,470(H) |
| 2 | Producivity | 2880 Sheets/8hrs(Length:470mm) |
| 3 | Applicable PCB Size | (W)50~310mm |
| Lead Length | ≤10mm | |
| Solder Capacity | Approx 500kg (in case of eutectic solder) | |
| Tempeature | ~299℃ Preset Table | |
| Heater Capacity | 11.7kW | |
| 4 | Dual Wave | 1st Wave-For Chip |
| 2nd Wave-For General | ||
| 5 | Pre-Heater Temp | ~400℃PRESET TABLE |
| Pre-Heater Capacity | 10.4kW | |
| 6 | Fluxer Capacity | Forming Type, Approx. 15liters |
| 7 | Conveyor Speed | 0~2.4m/min |
| 8 | Air Pressure | 4~5fkg/㎠ |
| 9 | Power Source | 3-Phase, 380V, 60Hz, 23kW |
| 10 | Weight | Approx.1,400kg |
