Feaures of ITM-400
1. It is a particular roller conveyor transferring system of our own.
2. It minimizes noise and vibration by attaching special spindle.

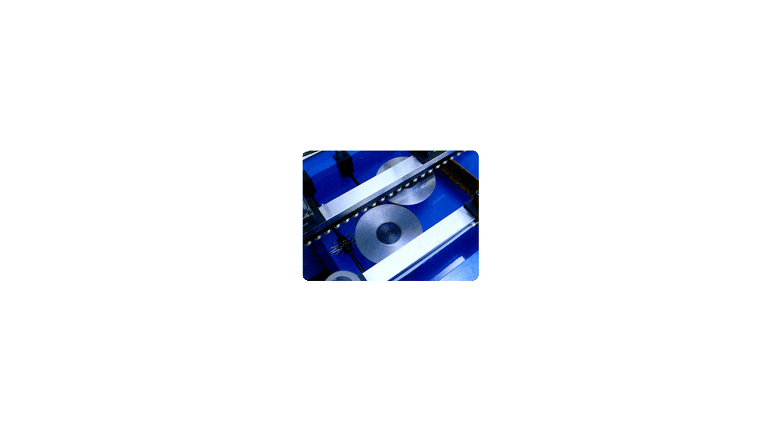

3. It is easy to control the blade in a horizontal and back- and-forth angle with V-block sliding.
4. It has PCB twist preventing gadget, brush device and conveyor in the input and output exit.
INPUT, OUTPUT CONVEYOR
1. It is easy to transfer PCB back and forth by attaching input, output conveyor.
2. It is applied the chain type for input conveyor.
3. It is applied the belt type for output conveyor.
TWIST PREVENTING GADGET OF PCB
1. It can be adjusted up and down, back and forth about the twisting effect of PCB
2. Then twisting jig can adjust by itself to the right and left side.
SAFETY GADFET
1. Installed a emergency switch above the cover
2. Installed a electricity cutting-off gadget in time of opening and closing
ITM-400 SPECIFICATION | ||
No. | ITEM | SPECIFICATION |
1 | DIMENSION | (L)1400mm, (W)670mm, (H)1000mm |
2 | APPLICABLE PCB SIZE | (W)50~320mm |
3 | SPINDLE R.P.M | STD. 450 R.P.M |
4 | CUTTING BLADE | STD. 200Ø*2 |
5 | CONVEYOR TYPE | PRECISION POLLER C.V |
SPEED | 0~2.4m/mim | |
6 | LEAD CUTTING LENGTH | MIN 1.5mm |
7 | SPINDLE MOTOR | IHP*2 |
8 | POWER SOURCE | AC 220V ±10%, 3Φ ,2.1kw |
