Name

Channel steel CHANNEL 1

Model SM-41
Series Unitstrut
Product Description

Channel steel CHANNEL 1 (SM-1)

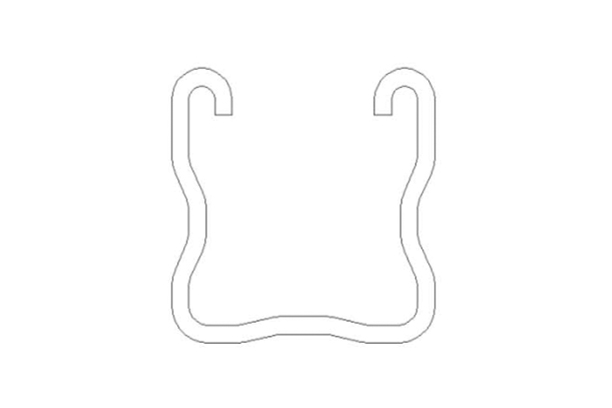

SHIMO channel steel is configured with section or single-plane pipe have section edges of the shape curved inward so as to be suitable for structure fixing.

· Raw material : S235JR of DIN EN 10025 specification
· Size (B x H) : 41mm x 41mm
· Finishing material : 1000g/㎡ of continuous hot dip galvanizing with 1000g/㎡ (HDG plus, approx, 70㎛)


SM-41


SM-41 Characteristics


BEAM LOADING

Span InMaximum allowable uniform load LbsDeflection upon inputting uniform loadUniform load upon deflection
Span/180
Lbs
Span/240
Lbs
Span/360
Lbs
24
36
1,600
1,130
0.06
0.13
1,690
1,130
1,690
1,130
1,690
900
48
60
850
680
0.22
0.35
850
650
760
480
500
320
72
84
560
480
0.50
0.68
450
330
340
250
220
160
96
108
420
380
0.89
1.14
250
200
180
150
130
100
120
144
340
280
1.40
2.00
160
110
120
80
80
60
168
192
240
210
2.72
3.55
80
60
60
50
40
NR
216
240
190
170
4.58
5.62
50
40
40
NR
NR
NR



COLUMN LOADING

Unbraced HeightSlot Face maximum allowable load LbsMaximum column load with C.G Application
K = 0.65
Lbs
K = 0.80
Lbs
K =1.0
Lbs
K = 1.2
Lbs
24
36
3,550
3,190
10.740
8,910
9,890
7,740
8,770
6,390
7,740
5,310
48
60
2,770
2,380
7,260
5,910
6,010
4,690
4,690
3,630
3,800
2,960
72
84
2,080
1,860
4,840
4,040
3,800
3,200
2,960
2,480
2,400
1,980
96
108
1,670
1,510
3,480
3,050
2,750
2,400
2,110
1,810
1,660
**
120
144
1,380
1,150
2,700
1,660
2,110
1,660
**
**
**
**
