Channel Steel CHANNEL 1(SM-41D)

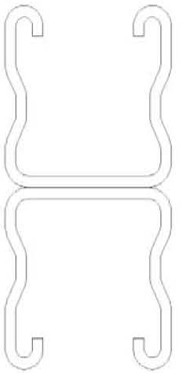

SHIMO channel steel is configured with welded channel steel having the section edge of the shape curved inward so as to be suitable for fixing of structures or installation of two plain pipes along with a slot on the right side.
· Raw Material : DIN EN 10147 규격S235GD
· Size (B x H) : 41mm x 82mm
· Finishing Material : 1000g/㎡ continuous hot dip galvanizing
continuous hot dip galvanized(HDG plus, approx, 70㎛)
SM-41D
SM-41D Specifications
BEAM LOADING
| Span In | Maximum allowable uniform load Lbs | Deflection upon inputting of uniform load | Uniform load upon deflection | ||
| Span/180 Lbs | Span/240 Lbs | Span/360 Lbs | |||
| 24 36 | 3,500* 3,190 | 0.02 0.07 | 3,500* 3,190 | 3,500* 3,190 | 3,500* 3,190 |
| 48 60 | 2,390 1,910 | 0.13 0.20 | 2,390 1,910 | 2,390 1,910 | 2,390 1,620 |
| 72 84 | 1,600 1,370 | 0.28 0.39 | 1,600 1,370 | 1,600 1,240 | 1,130 83 |
| 96 108 | 1,200 1,060 | 0.51 0.64 | 1,200 1,000 | 950 750 | 630 500 |
| 120 144 | 960 800 | 0.79 1.14 | 810 560 | 610 420 | 410 280 |
| 168 192 | 680 600 | 1.53 2.02 | 410 320 | 310 240 | 210 160 |
| 216 240 | 530 480 | 2.54 3.16 | 250 200 | 190 150 | 130
|
COLUMN LOADING
| Unbraced Height | Slot Face Maximum allowable load Lbs | Maximum column load with C.G. application | |||
| K = 0.65 Lbs | K = 0.80 Lbs | K =1.0 Lbs | K = 1.2 Lbs | ||
| 24 36 | 6,430 6,290 | 24,280 22,810 | 23,610 21,820 | 22,700 20,650 | 21,820 19,670 |
| 48 60 | 6,160 6,000 | 21,410 20,210 | 20,300 18,670 | 18,670 15,520 | 16,160 12,390 |
| 72 84 | 5,620 5,170 | 18,970 16,950 | 16,160 13,630 | 12,390 9,470 | 8,9500 6,580 |
| 96 108 | 4,690 4,170 | 14,890 12,850 | 11,190 8,950 | 7,250 5,730 | 5,040 3,980 |
| 120 144 | 3,690 2,930 | 10,900 7,630 | 7,250 5,040 | 4,640 ** | ** ** |
