| Hose Size | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | MIN.Bend Radius | Weight | |||||
| mm | Inch | mm | Inch | bar | psi | bar | psi | mm | Inch | kg/m | |
| 1/4″ | 6.3 | 0.25 | 14.8 | 0.58 | 400 | 5800 | 1600 | 23210 | 100 | 3.9 | 0.38 |
| 3/8″ | 9.5 | 0.38 | 18.7 | 0.74 | 330 | 4790 | 1320 | 19150 | 127 | 5.0 | 0.53 |
| 1/2″ | 12.7 | 0.50 | 21.9 | 0.86 | 275 | 3990 | 1100 | 15950 | 178 | 7.0 | 0.65 |
| 3/4″ | 19.0 | 0.75 | 29 | 1.14 | 215 | 3120 | 860 | 12470 | 240 | 9.4 | 1.00 |
| 1″ | 25.4 | 1.00 | 36.7 | 1.44 | 165 | 2390 | 660 | 9570 | 300 | 11.8 | 1.48 |
| 1-1/4″ | 32.0 | 1.25 | 45.6 | 1.79 | 125 | 1810 | 500 | 7250 | 419 | 16.5 | 2.14 |
| 1-1/2″ | 38.0 | 1.50 | 52 | 2.04 | 90 | 1310 | 360 | 5220 | 500 | 19.7 | 2.55 |
| 2″ | 50.8 | 2.00 | 64.7 | 2.54 | 80 | 1160 | 320 | 4640 | 630 | 24.8 | 3.30 |
| APPLICATIONS | Hydraulic fluids, glycol, mineral oil, fuels, lubrication, emulsion, hydrocarbons |
| TEMPERATURE RANGE | 40℃ to + 100℃ (-40°F to + 212°F) |

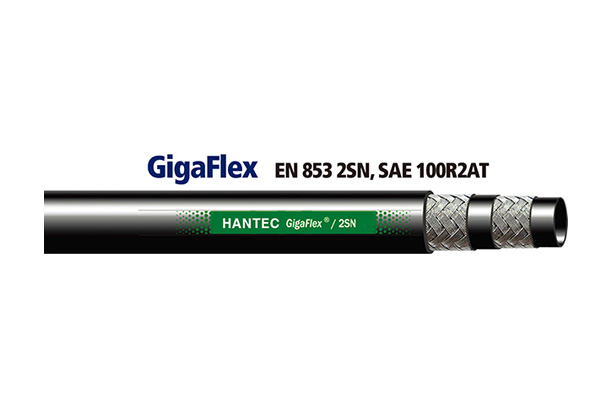

| REINFORCEMENT | Two high tensile steel wire braid |
| REFERENCE SPECIFICATION | EN853 2SN, SAE100R2AT |
