| Hose Size | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | MIN.Bend Radius | Weight | |||||
| mm | Inch | mm | Inch | bar | psi | bar | psi | mm | Inch | kg/m | |
| 1/4″ | 6.3 | 0.25 | 13.1 | 0.52 | 225 | 3260 | 900 | 13050 | 100 | 3.5 | 0.26 |
| 3/8″ | 9.5 | 0.38 | 17.1 | 0.67 | 180 | 2610 | 720 | 10440 | 127 | 5.0 | 0.36 |
| 1/2″ | 12.7 | 0.50 | 20.2 | 0.80 | 160 | 2320 | 640 | 9280 | 178 | 7.0 | 0.46 |
| 3/4″ | 19.0 | 0.75 | 27.3 | 1.07 | 105 | 1520 | 420 | 6090 | 240 | 9.4 | 0.74 |
| 1″ | 25.4 | 1.00 | 35 | 1.38 | 88 | 14280 | 350 | 5080 | 300 | 11.8 | 1.06 |
| 1-1/4″ | 32.0 | 1.25 | 43.6 | 1.71 | 63 | 910 | 250 | 3630 | 419 | 16.5 | 1.36 |
| 1-1/2″ | 38.0 | 1.50 | 50 | 1.96 | 50 | 730 | 200 | 2900 | 500 | 19.7 | 1.65 |
| 2″ | 50.8 | 2.00 | 62.7 | 2.46 | 40 | 580 | 160 | 2320 | 630 | 24.8 | 2.05 |
| APPLICATIONS | Hydraulic fluids, glycol, mineral oil, fuels, lubrication, emulsion, hydrocarbons |
| TEMPERATURE RANGE | 40℃ to + 100℃ (-40°F to + 212°F) |
| REINFORCEMENT | One high tensile steel wire braid |

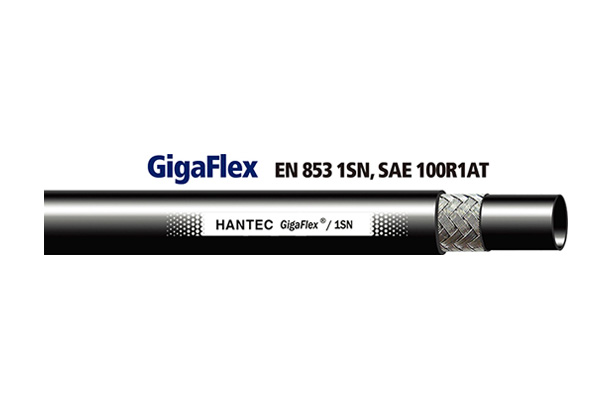

| REFERENCE SPECIFICATION | EN853 1SN, SAE100R1AT |
