| Hose Size | Hose I.D. | Hose O.D. | Working Pressure | Burst Pressure | MIN.Bend Radius | Weight | |||||
| mm | Inch | mm | Inch | bar | psi | bar | psi | mm | Inch | kg/m | |
| 3/4″ | 19.0 | 0.75 | 31.9 | 1.25 | 430 | 6235 | 1720 | 24946 | 210 | 8.26 | 1.43 |
| 1″ | 26.0 | 1.02 | 38.7 | 1.52 | 400 | 5800 | 1600 | 23206 | 220 | 8.66 | 2.09 |
| 1-1/4″ | 32.5 | 1.27 | 45.2 | 1.77 | 360 | 5220 | 1440 | 20885 | 240 | 9.44 | 2.58 |
| 1-1/2″ | 38.7 | 1.52 | 53.4 | 2.10 | 290 | 4205 | 1160 | 16820 | 560 | 22.0 | 3.30 |
| 2″ | 51.1 | 2.01 | 67.3 | 2.64 | 250 | 3625 | 1000 | 14500 | 700 | 27.6 | 4.94 |
| APPLICATIONS | – Very high pressure line – Hydraulic fluids, glycol, mineral oil, fuels, lubrication, emulsion, hydrocarbons |
| TEMPERATURE RANGE | 40℃ to + 100℃ (-40°F to + 212°F) |
| REINFORCEMENT | Four high tensile steel spirals |

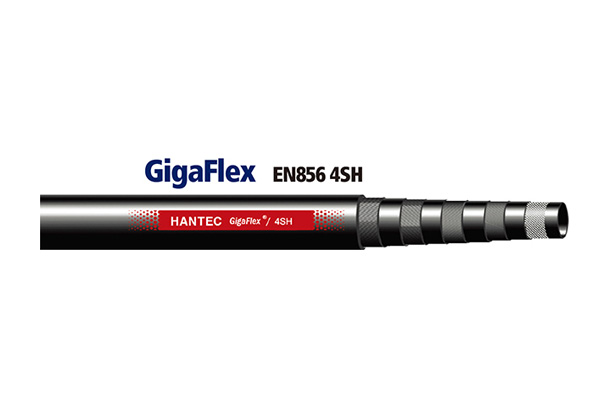

| REFERENCE SPECIFICATION | EN856 4SH |
