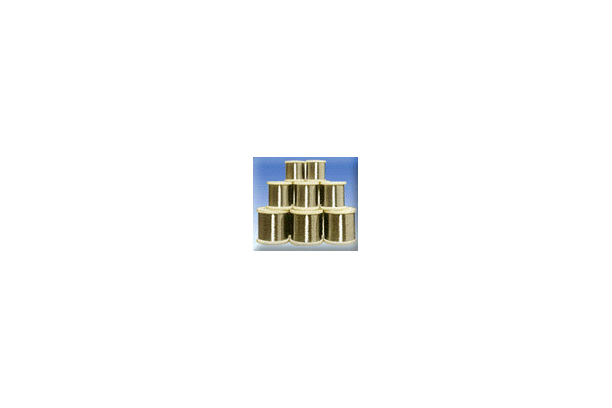

Stainless Steel wire
Series STS-Wire
Product Description

- Stainless Steel Wire Available Grades

DescriptionGradeAvailable Grades & Application
AusteniteAISI 202(1.4373)
AISI 302(1.4310)
AISI 304(1.4301)
AISI 304L(1.4306)
AISI 305 (1.4303)
AISI 316 (1.4401)
AISI 316L(1.4404)		Alternative to 302, used for kitchen wear
Cold working possible, used for springs
General steel grade for normal use
Low carbon steel of 304, excellent intergranular corrosion resistance, used for fine wires
Less work hardening compared to 304, used for cold heading
Excellent corrosion resistance, used for corrosion resistance materials
Low carbon steel of 316, excellent intergranular corrosion resistance
FerriteAISI 430 (1.4016)
AISI 434 (1.4113)		Excellent corrosion resistance, used for bolts, nuts, scrubbers
Improved from 430, better corrosion resistance than 430
MartensiteAISI 410 (1.4016)
AISI 420J2(1.4028)

Improved from 430, better corrosion resistance than 430
Excellent heat treatment hardness, used for shaft

- Stainless Steel Wire standard


Soft 1st (W1 SOFT DULL,or BRIGHT)

Linear
diameter(mm)		STS 202(M), 304N1STS 303, 304(L),
316(L), 310S		STS 304HC, 305,
305J1, XM-7
Tensile
strength
(kgf/mm2)		Percentage
of elongation(%)		Tensile
strength
(kgf/mm2)		Percentage
of elongation(%)		Tensile
strength
(kgf/mm2)		Percentage
of elongation(%)
0.05 exceed 0.16 below74~10020Over66~9220Over63~8920Over
0.16 exceed 0.50 below69~9520Over62~8820Over59~8520Over
0.50 exceed 1.60 below66~9230Over58~8430Over55~8130Over
1.60 exceed 5.00 below64~9030Over53~7930Over51~7730Over
5.00 exceed 14.00 below56~8230Over51~7730Over50~7630Over
0.02 Over 0.05 below90~11510OverSTS 304, 304L application
0.02 Over 0.05 below66~92

STS 316, 316L application Tensilestrength(kgf/mm2) Percentageof elongation(%)0.05 exceed 0.16 below 74~100 20Over 66~92 20Over 63~89 20Over0.16 exceed 0.50 below 69~95 20Over 62~88 20Over 59~85 20Over0.50 exceed 1.60 below 66~92 30Over 58~84 30Over 55~81 30Over1.60 exceed 5.00 below 64~90 30Over 53~79 30Over 51~77 30Over5.00 exceed 14.00 below 56~82 30Over 51~77 30Over 50~76 30Over0.02 Over 0.05 below 90~115 10Over STS 304, 304L application0.02 Over 0.05 below 66~92 STS 316, 316L application


Soft 2st (W2!)

Linear diameter(mm)STS 202(M), 303, 304(L), 304HC, 305, 310S, 316(L), XM-7STS 410, 430STS 416, 420J2,
420F, 430F
Tensile strength
(kgf/mm2)		Tensile strength
(kgf/mm2)		Tensile strength
(kgf/mm2)
0.80 Over 1.60 below80~115 65~95
0.80 Over 5.00 below 55~80
1.60 exceed 5.00 below76~110 60~90
5.00 exceed 14.00 below76~10550~7660~85


1/8 hardened line (1/8H)

near diameter(mm)STS 202(M), 303, 304(L), 304HC, 305, 310S, 316(L), XM-7STS 410, 430STS 416, 420J2,
420F, 430F
Tensile strength
(kgf/mm2)		Tensile strength
(kgf/mm2)		Tensile strength
(kgf/mm2)
0.80 Over 1.60 below80~115 65~95
0.80 Over 5.00 below 55~80
1.60 exceed 5.00 below76~110 60~90
5.00 exceed 14.00 below76~10550~7660~85


1/4 hardened line (1/4H)

ear diameter(mm)STS 302, 304(L), 316(l)Linear diameter(mm)STS 420J2STS 430
Tensile strength(kgf/mm2)Tensile strength(kgf/mm 2)
0.60 Over 1.60 below92~1120.80 Over 5.00 below60~8070~90
1.60 exceed 2.90 below87~107
2.90 exceed 5.50 below82~102
5.50 Over 7.00 below

76~97


3/4 hardened line (3/4H)
DescriptionLinear diameter(mm)Tensile strength (kgf/mm2)
STS 202(M), 304, 304N1, 316s0.80 Over 1.60 below115~150
1.60 Over 5.00 below110~145
5.00 Over 6.00 below105~135
Linear
diameter(mm)		STS 304, 302Linear
diameter(mm)		STS 305, 316Linear
diameter(mm)		STS 430, 420J2
Tensile
strength
(kgf/mm2)		Tensile
strength
(kgf/mm2)		Tensile
strength
(kgf/mm2)
0.32~0.40150~1750.32~0.40135~1650.80~5.0090~110
0.45~0.65140~1650.70~1.20120~140
0.70~1.80130~1551.00~2.00115~135
2.00~2.90120~1402.30~3.50110~130
3.20~3.50110~1304.00~4.50105~125
4.00~4.50105~125


FULL HARD line(F.H)
Linear
diameter(mm)		STS 304, 302Linear
diameter(mm)		STS 304, 302Linear
diameter(mm)		STS 304, 302
Tensile
strength
(kgf/mm2)		Tensile
strength
(kgf/mm2)		Tensile
strength
(kgf/mm2)
~0.18215~2452.90155~175~0.11190~220
0.20~0.29215~2403.20~4.00145~1650.12~0.20180~210
0.32~0.35210~2354.10~5.5132~1520.23~0.25172~200
0.40~0.45205~2305.5~7.0127~1480.27~0.38165~190
0.50~0.55200~225  0.40~1.00158~179
1.60~0.65195~220  1.20158~179
0.70190~215  1.40155~176
0.80~0.90185~210  1.60~1.80151~172
1.00180~205  2.00148~169
1.20175~200  2.30144~165
1.40~1.60170~195  2.60141~162
1.80~2.00165~185  2.90137~158
2.30~2.60160~180  3.20130~151

- Allowable error and Average error
Linear diameter(mm)Hard allowable error(mm)Average error(mm)Remarks
Manufacturing practicesDesired valueManufacturing practicesDesired value
0.02 Over 0.04 below±0.0015- 0.00100.0015 below0.0010 below
0.04 Over 0.07 below±0.002- 0.00150.002 below0.0015 below
0.07 Over 0.10 below±0.003- 0.0020.003 below0.0020 below
0.10 Over 0.16 below±0.004- 0.0030.004 below0.003 below
0.16 Over 0.25 below±0.006-0.0040.006 below0.004 below
0.25 Over 0.40 below±0.008- 0.0050.008 below0.005 below
0.40 Over 0.70 below±0.010- 0.0070.010 below0.007 below
0.70 Over 1.00 below±0.015- 0.0120.015 below0.012 below
1.00 Over 1.60 below±0.02- 0.0150.02 below0.015 below
1.60 below 2.80 below±0.03- 0.0200.03 below0.020 below
2.80 Over 5.00 below±0.04- 0.0300.04 below0.030 below
5.00 Over 9.00 below±0.05- 0.0400.05 below0.040 below
9.00 Over 12.0 below±0.06- 0.0450.06 below0.045 below
12.0 Over 14.0 below±0.07- 0.0500.07 below0.050 below
