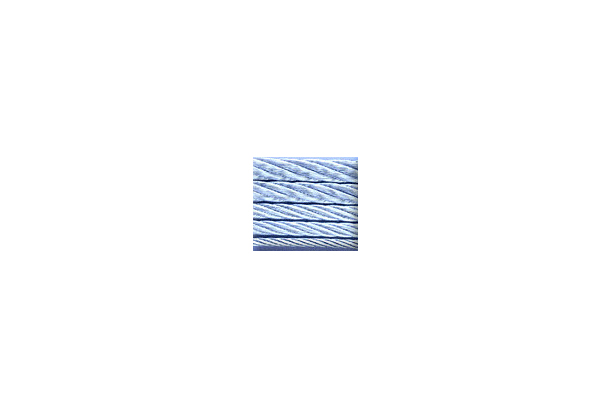

Rope wire

- Rope wire type

Description	Tensile Strength	Application
Austenite	AISI 302 (1.4310)	Building Structures Leisure
	AISI 304 (1.4301)
	AISI 305 (1.4303)
	AISI 316 (1.4401)

- Rope wire tandard

Linear diameter(mm)	STS 302, 304			STS 305, 316
	Tensile strength (kgf/mm 2)			Tensile strength (kgf/mm 2)
	A type	B type	C type	Tensile strength (kgf/mm 2)
0.02~0.18	185~215	210~239	225~250	157~187
0.19~0.20	185~215	210~239	219~246	157~187
0.21~0.25	185~215	204~232	219~246	157~187
0.26~0.28	185~215	204~232	218~243	154~184
0.29~0.30	168~198	204~232	218~243	154~184
0.31~0.38	168~198	197~225	218~243	154~184
0.39~0.48	168~198	197~225	214~239	154~184
0.49~0.52	168~198	186~207	207~232	150~180
0.53~0.64	161~191	186~207	207~232	150~180
0.65~0.77	161~191	186~207	200~221	150~180
0.78~0.89	154~184	183~204	183~211	150~180
0.90~1.02	154~184	183~204	183~211	150~180
1.03~1.28	154~184	179~200	179~200	147~177
1.29~1.52	147~177	176~197	176~197	143~183
1.53~1.78	147~177	172~193	172~193	140~170
1.79~2.04	147~177	169~190	169~190	133~163
2.05~2.29	130~160	169~190	169~190	133~163
2.30~2.54	130~160	165~186	165~186	130~160
2.55~3.30	130~160	165~186	165~186	130~160

- Allowable error and Average error

Linear diameter(mm)	Hard allowable error(mm)		Average error (mm)		Remarks
Linear diameter(mm)	Manufacturing practices	Desired value	Manufacturing practices	Desired value	Remarks
0.10~0.30	± 0.004	- 0.003	0.004 below	0.003 below
0.31~0.48	± 0.006	- 0.005	0.006 below	0.005 below
0.49~0.77	± 0.009	- 0.007	0.009 below	0.007 below
0.78~1.52	± 0.015	- 0.010	0.015 below	0.010 below
1.53~2.54	± 0.020	- 0.015	0.020 below	0.015 below
2.55~3.30	± 0.030	- 0.020	0.030 below	0.020 below

Name	Rope wire
Series	STS-Wire

DAEHO p&c
