Name

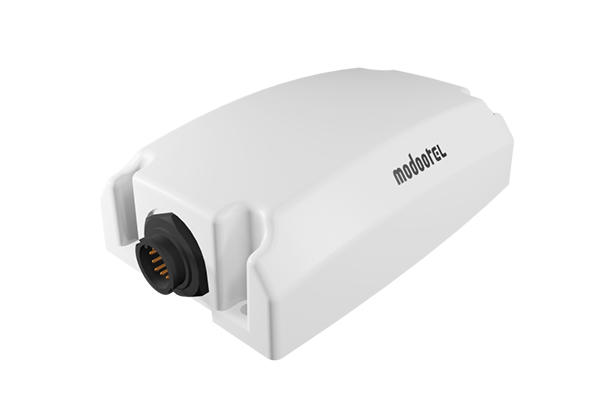

Satellite-based tracking & Data Reporting system

Model WICHI-10
Series WICHI-10 (PRODUCTS)
Product Description


For your Global businesses,

WICHI-10 provide the ideal solution for

your asset tracking and monitoring anywhere


  • Advanced Compact without any space constrain
  • Reliably delivers the information
  • Safely delivers the information with security
  • Simply apply to your deployed applications


Monitor and update status on every applications.

Modootel WICHI -10 prevent potential danger ofyour asset everywhere for wide rage of industries and ensure the safety and security.


Features

– Global Coverage

– Reliable Autonomous

– Realtime Localisation

– Remote Control

– Low Latency


Applications

– Asset tracking

– Fleet management

– Pipeline monitoring

– Disaster and emergency response

– Environmental monitoring


Manage your assets on the screen

Monitor and manage your remote asset and geofencing with administrative control via online

Get alarms and event notification of your asset for realtime

Detail reporting system and manage terminals & users as an administrator


Key fearures you get with WICHI-10 for identifying your assets

– Two-way connectivity

– Multicast and broadcast capability enabling efficient mass polling and message distribution

– Ruggedized reliable terminals

– Embedded GNSS receiver

– Automatic positioning reporting

– Change reporting interval

– On demand data reporting



TECHNICAL SPECIFICATION
Physical
Weight300g
Overall dimension146.61 x 89.4 x 43 mm
Environmental
Temperature range-40°C ~ +85°C
VibrationIEC60945 requirement
HumidityLess than 95% at +40°C
IP RatingIP66
Power
Input Voltage9~32V (Supply Voltage: 5V)
Receive0.7W, Max Peak:1.5W
Transmit1.5W, Max Peak: 8W
Idle0.7W
Iridium Antenna
Frequency1621±4MHz
Return Loss<-15dB
Gain4dBic
PolarizationRHCP
GNSS Antenna
Frequency1575~1608MHz
(GPS:1575, GLONASS:1592~1608)
Return Loss7dB
Gain3.5dBic
PolarizationRHCP


Data transmit & ReceiveMaximum Tx - 340byte, Rx - 270byte
RS-485, RS-232Baud rate 19,200bps / Data bits : 8bit / Stop bits : 1 / Parity : None /
HandshakingNone
I/O PortInput : 0~3.3V, 4 x analog(12bit resolution) or digital in
Output : 3.3V Open drain

Optional box for Bluetooth function & Distress button

Built in Iridium 9602 modem
