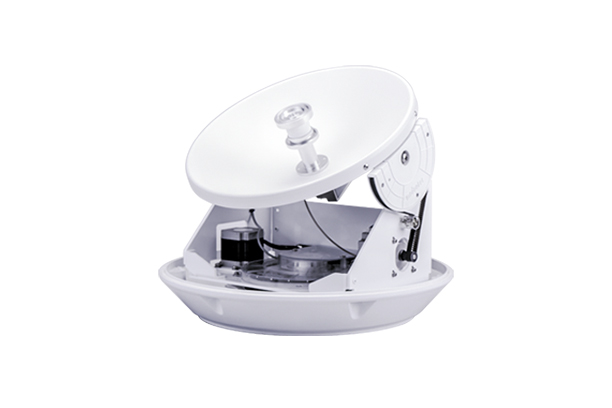

Modootel Marine Satellite TV Antenna
33cm Antenna
High Quality TV same as your home
Watch Satellite Broadcasting
Automatic Identity and High Speed Tracking with Digital Video Broadcasting
Easy to install
Easy Satellite information and installation with Antenna Control Unit(ACU)
Easy to control
Suitable to all types of vessels and Automated system without any hard working and just power the satellite TV on
M33S Technical Specification & Dimension
Input Frequency | Ku-Band(10.7 GHz ~ 12.75 GHz) | |||
Minimum EIRP | 51 dBW | |||
Polarization | Horizontal/Vertical, RHCP/LHCP | |||
EL Control Range | 680° | |||
AZ Control Range | 15° ~ 90° | |||
ROLL & PITCH | ROLL 65°/Sec, PITCH 65°/Sec | |||
Tracking Rate | 60°/Sec | |||
Power Supply | 110~220VAC or 9.5V~36V DC(option) | |||
Antenna Size | D430mm x H430mm | |||
Antenna Weight | 7.5 Kg | |||
ACU Weight | 1.1 Kg | |||
Operation Temp. | -15°C ~ +60°C | |||
Storage Temp. | -25°C ~ +70°C | |||
Humidity | 95% R.H. |
ACU Dimension
