Name

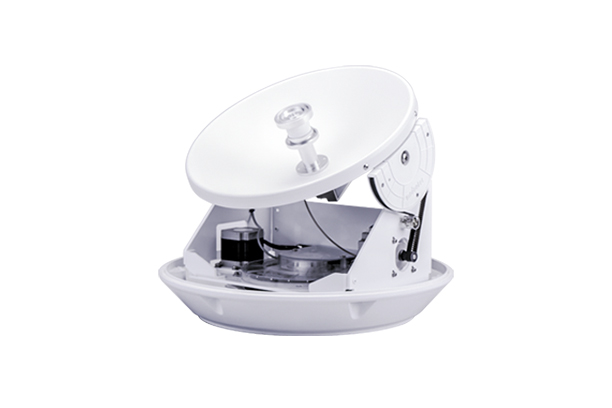

Modootel Marine Satellite TV Antenna

Model TVRO M60S
Series Satellite Communication (PRODUCTS)
Product Description

60cm Antenna

High Quality TV same as your home


Watch Satellite Broadcasting

Automatic Identity and High Speed Tracking with Digital Video Broadcasting


Easy to install

Easy Satellite information and installation with Antenna Control Unit(ACU)


Easy to control

Suitable to all types of vessels and Automated system without any hard working and just power the satellite TV on



M60S Technical Specification & Dimension

Input FrequencyKu-Band(10.7 GHz ~ 12.75 GHz)
Minimum EIRP47 dBW
PolarizationHorizontal/Vertical, RHCP/LHCP
EL Control Range680°
AZ Control Range0° ~ 90°
ROLL & PITCHROLL 50°/Sec, PITCH 50°/Sec
Tracking Rate50°/Sec
Power Supply110~220VAC or 9.5V~36V DC(option)
Antenna SizeD700 x H740mm
Antenna Weight16 Kg
ACU Weight1.1 Kg
Operation Temp.-15°C ~ +60°C
Storage Temp.-25°C ~ +70°C
Humidity95% R.H.





ACU Dimension
