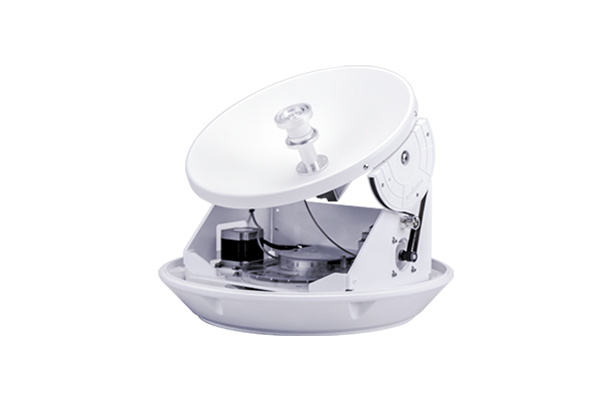

Modootel Marine Satellite TV Antenna

Model TVRO M45S
Series Satellite Communication (PRODUCTS)
Product Description

45cm Antenna

High Quality TV same as your home


Watch Satellite Broadcasting

Automatic Identity and High Speed Tracking with Digital Video Broadcasting


Easy to install

Easy Satellite information and installation with Antenna Control Unit(ACU)


Easy to control

Suitable to all types of vessels and Automated system without

any hard working and just power the satellite TV on

Input FrequencyKu-Band(10.7 GHz ~ 12.75 GHz)
Minimum EIRP49 dBW
PolarizationHorizontal/Vertical, RHCP/LHCP
EL Control Range680°
AZ Control Range0° ~ 90°
ROLL & PITCHROLL 60°/Sec, PITCH 60°/Sec
Tracking Rate60°/Sec
Power Supply110~220VAC or 9.5V~36V DC(option)
Antenna SizeD500 x H550mm
Antenna Weight13.5 Kg
ACU Weight1.1 Kg
Operation Temp.-15°C ~ +60°C
Storage Temp.-25°C ~ +70°C
Humidity95% R.H.



ACU Dimension
